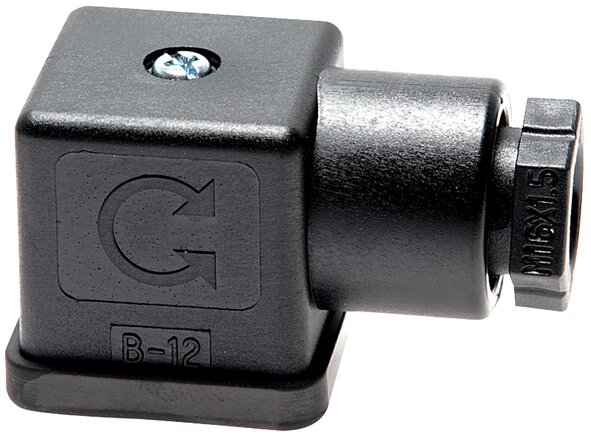

Exemplary representation: Standard plug for solenoid coil, size 1

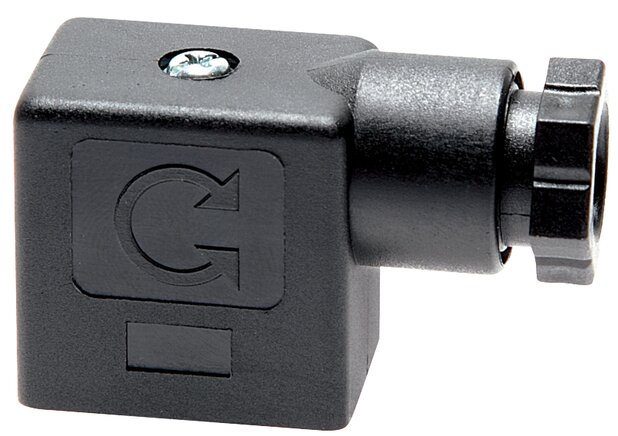

Exemplary representation: Standard plug for solenoid coils, size 0
Exemplary representation: Standard plug for solenoid coils, size 3
Drawing: Plug size 0 (industry standard C)
Drawing: Plug size 1 (industry standard B)
Drawing: Plug size 3 (DIN/EN-A)
Drawing: Plug size 0C (DIN/EN-C)
Drawing: Plug size 1B (DIN/EN-B)
Exemplary representation: Standard plug for solenoid coil, size 1
Description:
Push in connector according to DIN 43650 / EN 175301-803 / industry standard.
Temperature range:
-40 to +125 °C
Voltage:
max. 250 V AC / 300 V DC, max. 6 A (plug size 3: max. 10 A)
Protection class:
IP 65
Scope of delivery:
Plug including screw and flat seal (plug size 3: Profile seal)
Suitable:
These plugs are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
