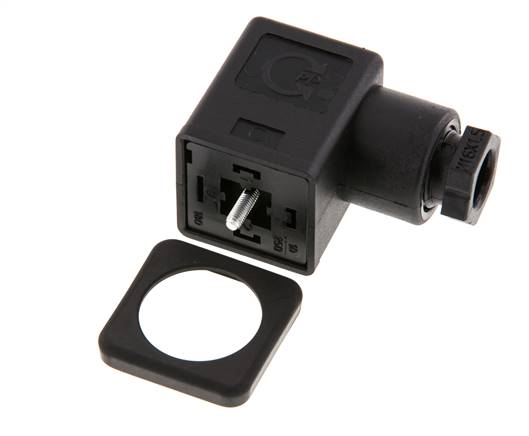

Plug size 3 (DIN/EN-A), black
{{ $t('shop.all.artikelnummer') }}:
ST 03 H
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Push in connector according to DIN 43650 / EN 175301-803 / industry standard.
Temperature range:
-40 to +125 °C
Voltage:
max. 250 V AC / 300 V DC, max. 6 A (plug size 3: max. 10 A)
Protection class:
IP 65
Scope of delivery:
Plug including screw and flat seal (plug size 3: Profile seal)
Suitable:
These plugs are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
Push in connector according to DIN 43650 / EN 175301-803 / industry standard.
Temperature range:
-40 to +125 °C
Voltage:
max. 250 V AC / 300 V DC, max. 6 A (plug size 3: max. 10 A)
Protection class:
IP 65
Scope of delivery:
Plug including screw and flat seal (plug size 3: Profile seal)
Suitable:
These plugs are preferably used for the connection of solenoid valves. The plugs are standardised according to DIN 43650 / EN 175301-803 or the complying industrial standard. Most valve manufacturers use plugs according to industrial standards for plug sizes 0 and 1.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Plug size | 3 |
| Standard | DIN/EN-A |
| colour | black |
| Number of contacts | 2 & PE |
| Height [mm] | 35 |
| Cable connection | M 16x1,5 |
{{ $t('shop.display.artikel.info') }} ST03H
| {{ $t('shop.all.gewicht') }} | 27 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571645274 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85369010 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 894) atlas9_seiten/894.pdf
Documentation doku/m2es.pdf
3D CAD file (volume model) protected/cad/3d/72562/st03h14029.stp
Documentation doku/m2es.pdf
3D CAD file (volume model) protected/cad/3d/72562/st03h14029.stp
