Item group

Machine taps, metric, DIN 371 / DIN 376

Name: Machine tap for through hole M 3 (HSS-E)
Brand: Landefeld
SKU: GEW MGV M3 HSSE
Price: 9.53 EUR
Availability: InStock

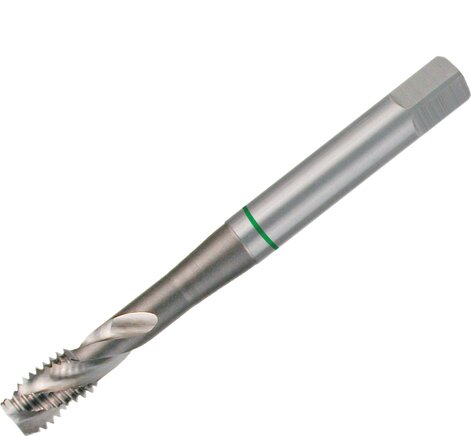

Exemplary representation: Machine tap for through hole (M 3 - M 10)

Exemplary representation: Machine tap for through hole (M 12)

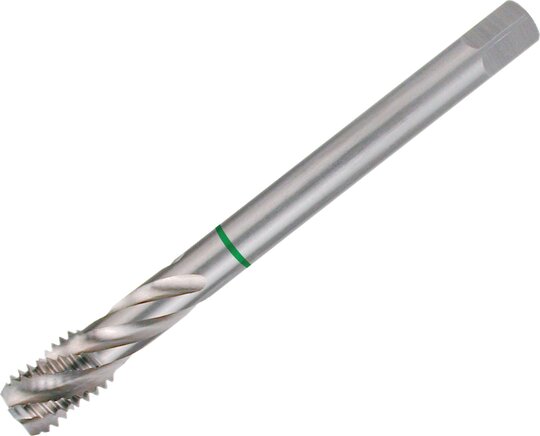

Exemplary representation: Machine tap for blind hole (M 3 - M 10)

Exemplary representation: Machine tap for blind hole (M 12)

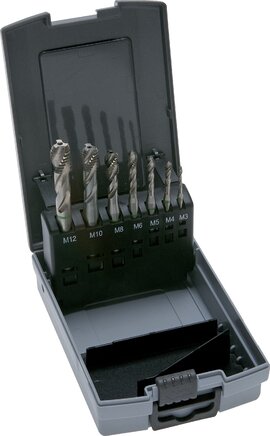

Exemplary representation: Machine tap set

Description:

Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)

Quality:

HSS-G Co 5 (HSS-E):

Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze

*in a stable industrial magazine

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 992) atlas9_seiten/992.pdf

Machine taps, metric, DIN 371 / DIN 376:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

GEW MGV M3 HSSE

Machine tap for through hole M 3 (HSS-E)

9,53€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for through hole	M 3	2,5	2,7

GEW MGV M4 HSSE

Machine tap for through hole M 4 (HSS-E)

9,53€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for through hole	M 4	3,3	3,4

GEW MGV M5 HSSE

Machine tap for through hole M 5 (HSS-E)

10,01€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for through hole	M 5	4,2	4,9

GEW MGV M6 HSSE

Machine tap for through hole M 6 (HSS-E)

11,07€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for through hole	M 6	5,0	4,9

GEW MGV M8 HSSE

Machine tap for through hole M 8 (HSS-E)

15,08€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for through hole	M 8	6,8	6,2

GEW MGV M10 HSSE

Machine tap for through hole M 10 (HSS-E)

18,58€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for through hole	M 10	8,5	8

GEW MG M12 HSSE

Machine tap for through hole M 12 (HSS-E)

21,23€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for through hole	M 12	10,2	9

GEW MSV M3 HSSE

Machine tap for blind hole, 35° right-hand helix M 3 (HSS-E)

12,54€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for blind hole, 35° right-hand helix	M 3	2,5	2,7

GEW MSV M4 HSSE

Machine tap for blind hole, 35° right-hand helix M 4 (HSS-E)

12,54€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for blind hole, 35° right-hand helix	M 4	3,3	3,4

GEW MSV M5 HSSE

Machine tap for blind hole, 35° right-hand helix M 5 (HSS-E)

12,54€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for blind hole, 35° right-hand helix	M 5	4,2	4,9

GEW MSV M6 HSSE

Machine tap for blind hole, 35° right-hand helix M 6 (HSS-E)

14,03€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for blind hole, 35° right-hand helix	M 6	5,0	4,9

GEW MSV M8 HSSE

Machine tap for blind hole, 35° right-hand helix M 8 (HSS-E)

18,58€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for blind hole, 35° right-hand helix	M 8	6,8	6,2

GEW MSV M10 HSSE

Machine tap for blind hole, 35° right-hand helix M 10 (HSS-E)

22,12€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for blind hole, 35° right-hand helix	M 10	8,5	8

GEW MS M12 HSSE

Machine tap for blind hole, 35° right-hand helix M 12 (HSS-E)

27,14€ incl. VAT

Version	Thread	Core hole diameter [mm]	Square (DIN 10) [mm]
Machine tap for blind hole, 35° right-hand helix	M 12	10,2	9

GEW MGV SET HSSE

Machine tap set for through holes (7 pieces in sturdy industrial case) DIN 371: M 3 - M 4 - M 5 - M

125,58€ incl. VAT

Square (DIN 10) [mm]	First cut
2,7 - 3,4 - 4,9 - 6,2 - 8,0 - 9,0	Shape B, 4 - 5 gears with spiral face inclination

Version

Machine tap set for through holes (7 pieces in sturdy industrial case)

GEW MSV SET HSSE

Machine tap set for blind holes (7 pieces in sturdy industrial case) DIN 371: M 3 - M 4 - M 5 - M 6

153,80€ incl. VAT

Square (DIN 10) [mm]	First cut
2,7 - 3,4 - 4,9 - 6,2 - 8,0	Shape C, 2 - 3 gears

Version

Machine tap set for blind holes (7 pieces in sturdy industrial case)
