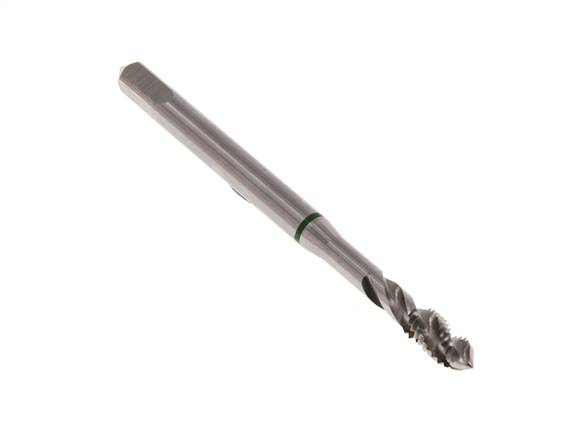

Machine tap for blind hole, 35° right-hand helix M 6 (HSS-E)
{{ $t('shop.all.artikelnummer') }}:
GEW MSV M6 HSSE
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Machine tap for blind hole, 35° right-hand helix |
| Thread | M 6 |
| Core hole diameter [mm] | 5,0 |
| Square (DIN 10) [mm] | 4,9 |
| Total length [mm] | 0 |
| Thread length [mm] | 9 |
| Shaft diameter [mm] | 6,0 |
| First cut | Shape C, 2 - 3 gears |
{{ $t('shop.display.artikel.info') }} GEWMSVM6HSSE
| {{ $t('shop.all.gewicht') }} | 17 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571161880 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 82074010 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 992) atlas9_seiten/992.pdf
