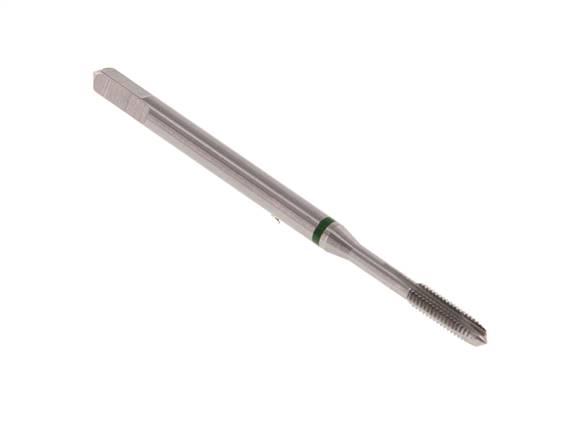

Machine tap for through hole M 3 (HSS-E)
{{ $t('shop.all.artikelnummer') }}:
GEW MGV M3 HSSE
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Machine tap for through hole |
| Thread | M 3 |
| Core hole diameter [mm] | 2,5 |
| Square (DIN 10) [mm] | 2,7 |
| Total length [mm] | 56 |
| Thread length [mm] | 10 |
| Shaft diameter [mm] | 3,5 |
| First cut | Shape B, 4 - 5 gears with spiral face inclination |
{{ $t('shop.display.artikel.info') }} GEWMGVM3HSSE
| {{ $t('shop.all.gewicht') }} | 5,7 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571161781 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 82074010 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 992) atlas9_seiten/992.pdf
