Item group

Throttles & one-way control valves (stainless steel), female threads

{{ bildGross.Beschreibung }}

{{ bildGross.Beschreibung }}

{{ bildGross.Beschreibung }}

Exemplary representation: Choke valve / choke non-return valve G 1/8" & G 1/4"

Exemplary representation: Choke valve / choke non-return valve M 5

detailed view: With slotted screw

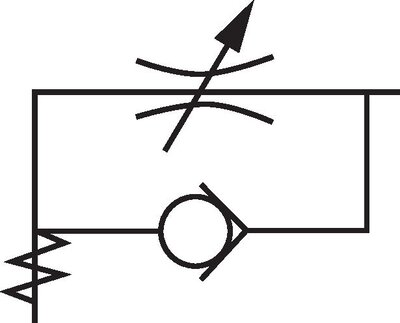

Schematic symbol: Throttle check valve (exhaust regulating - B)

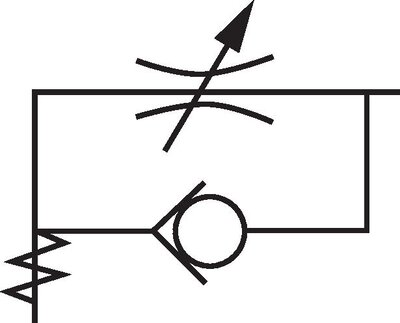

Schematic symbol: Throttle check valve (supply air regulating - A)

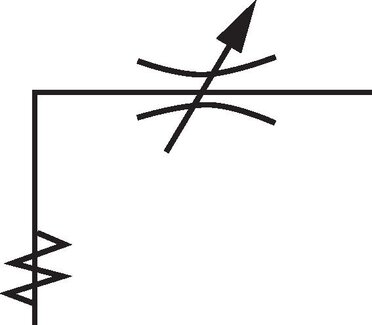

Schematic symbol: Throttle valve (supply and exhaust air control - C)

Materials:

Banjo bolt: 1.4571, ring piece: 1.4571, seals: FKM / PTFE

Temperature range:

-20 to +150 °C

Operating pressure:

0,2 to 10 bar

Media:

lubricated and unlubricated compressed air, non-toxic gases (50 µm)

Advantages:

•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)

Type B - exhaust regulating (standard):

Flow:

Restricted flow from thread to ring piece

Recommended use:

For cylinder from Ø 16 mm

Advantages:

•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds

Type A - supply air regulating (special version):

Flow:

Restricted flow from the ring piece to the thread

Recommended use:

For small cylinder Ø and short strokes (small volumes)

Advantages:

•even small air volumes can be controlled,
•forward and return strokes at different speeds possible

Type C - supply and exhaust air control (special version):

Flow throttled in both directions

Recommended use:

For small and single-acting cylinder

Advantages:

•Inlet and return flow same speeds

Disadvantages:

•may cause the cylinder to jump

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 785) atlas9_seiten/785.pdf
Documentation doku/grles.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

Throttles & one-way control valves (stainless steel), female threads:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

GRL 50 ES

Flow control silencer M 5, Exhaust air flow controlling (B)

104,98€ incl. VAT

Version	Thread external	Thread internal
Exhaust air flow controlling (B)	M 5	M 5

Setting

Slotted screw (can be adjusted using a screwdriver)

GRL 18 ES

Flow control silencer G 1/8", Exhaust air flow controlling (B)

130,14€ incl. VAT

Version	Thread external	Thread internal
Exhaust air flow controlling (B)	G 1/8"	G 1/8"

Setting

Slotted screw (can be adjusted using a screwdriver)

GRL 14 ES

Flow control silencer G 1/4", Exhaust air flow controlling (B)

139,91€ incl. VAT

Version	Thread external	Thread internal
Exhaust air flow controlling (B)	G 1/4"	G 1/4"

Setting

Slotted screw (can be adjusted using a screwdriver)

GRLA 50 ES

Flow control silencer M 5, Supply air flow controlling (A)

104,98€ incl. VAT

Version	Thread external	Thread internal
Supply air flow controlling (A)	M 5	M 5

Setting

Slotted screw (can be adjusted using a screwdriver)

GRLA 18 ES

Flow control silencer G 1/8", Supply air flow controlling (A)

130,14€ incl. VAT

Version	Thread external	Thread internal
Supply air flow controlling (A)	G 1/8"	G 1/8"

Setting

Slotted screw (can be adjusted using a screwdriver)

GRLA 14 ES

Flow control silencer G 1/4", Supply air flow controlling (A)

139,22€ incl. VAT

Version	Thread external	Thread internal
Supply air flow controlling (A)	G 1/4"	G 1/4"

Setting

Slotted screw (can be adjusted using a screwdriver)

GRLD 50 ES

Flow control silencer M 5, Supply air and exhaust air flow controlling (C)

104,98€ incl. VAT

Version	Thread external	Thread internal
Supply air and exhaust air flow controlling (C)	M 5	M 5

Setting

Slotted screw (can be adjusted using a screwdriver)

GRLD 18 ES

Flow control silencer G 1/8", Supply air and exhaust air flow controlling (C)

130,14€ incl. VAT

Version	Thread external	Thread internal
Supply air and exhaust air flow controlling (C)	G 1/8"	G 1/8"

Setting

Slotted screw (can be adjusted using a screwdriver)

GRLD 14 ES

Flow control silencer G 1/4", Supply air and exhaust air flow controlling (C)

139,22€ incl. VAT

Version	Thread external	Thread internal
Supply air and exhaust air flow controlling (C)	G 1/4"	G 1/4"

Setting

Slotted screw (can be adjusted using a screwdriver)
