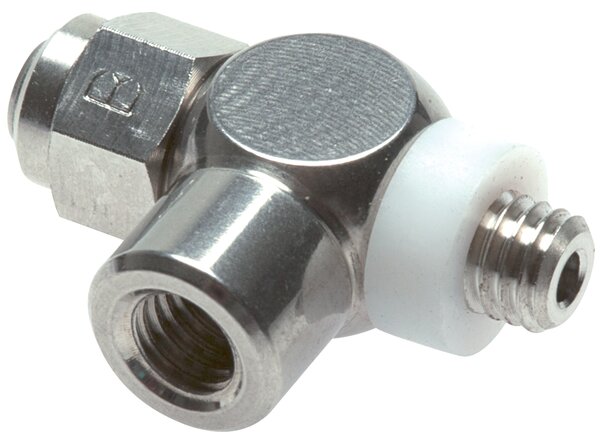

Flow control silencer M 5, Exhaust air flow controlling (B)

Materials:
Banjo bolt: 1.4571, ring piece: 1.4571, seals: FKM / PTFE

Temperature range:
-20 to +150 °C

Operating pressure:
0,2 to 10 bar

Media:
lubricated and unlubricated compressed air, non-toxic gases (50 µm)

Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)

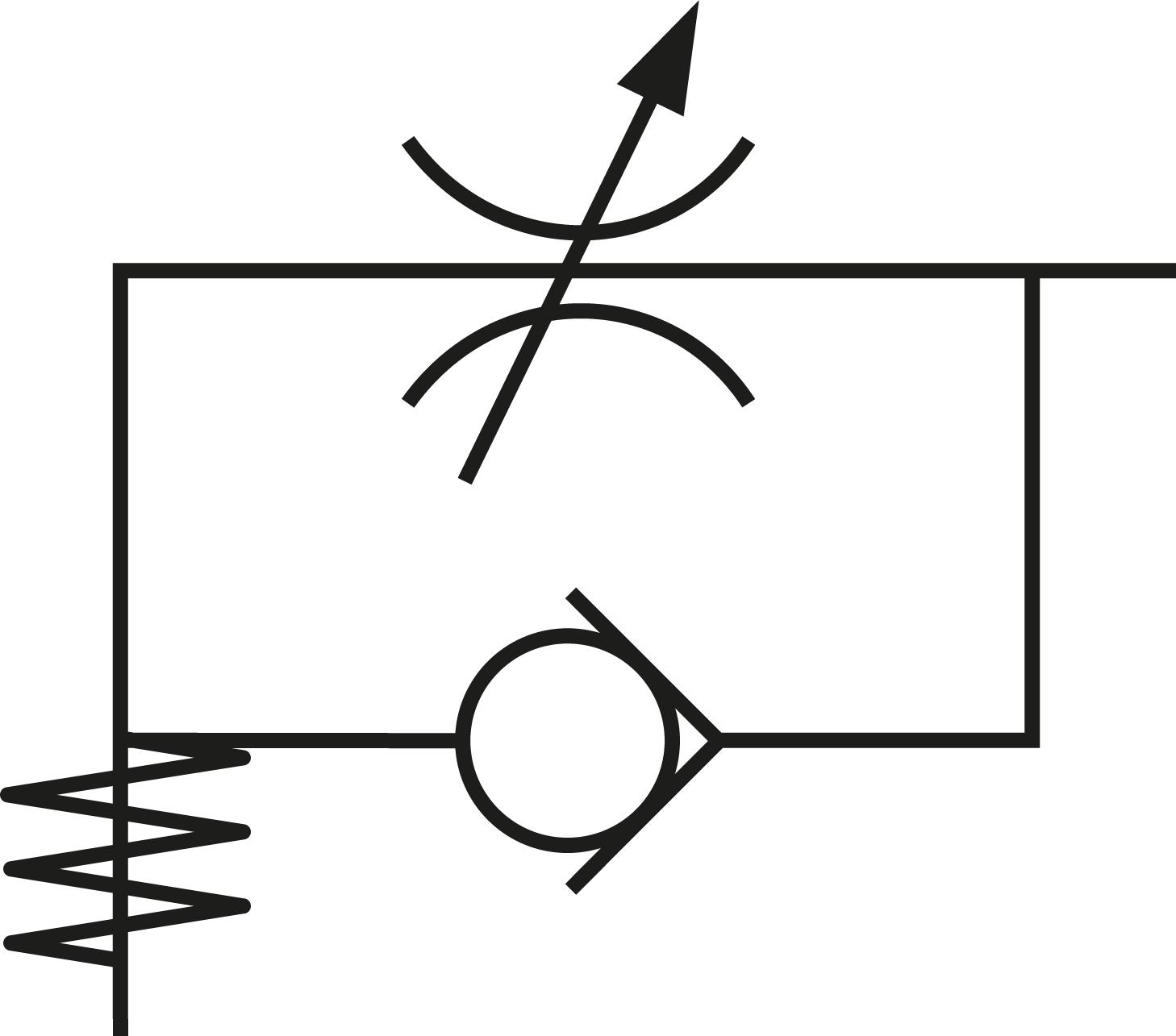

Type B - exhaust regulating (standard):


Flow:
Restricted flow from thread to ring piece

Recommended use:
For cylinder from Ø 16 mm

Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds

Type A - supply air regulating (special version):


Flow:
Restricted flow from the ring piece to the thread

Recommended use:
For small cylinder Ø and short strokes (small volumes)

Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible

Type C - supply and exhaust air control (special version):
Flow throttled in both directions

Recommended use:
For small and single-acting cylinder

Advantages:
•Inlet and return flow same speeds

Disadvantages:
•may cause the cylinder to jump

Version	Exhaust air flow controlling (B)
Setting	Slotted screw (can be adjusted using a screwdriver)
Thread external	M 5
Thread internal	M 5

{{ $t('shop.all.gewicht') }}	9,2 g / pcs
{{ $t('shop.all.gtin') }}	4050571857455
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
