Item group

Test couplings with hydraulic sealing cone, push-in fitting

Name: Plug test coupling 6 L-sealing cone
Brand: Landefeld
SKU: ME ST DKO 6 L
Price: 34.56 EUR
Availability: InStock

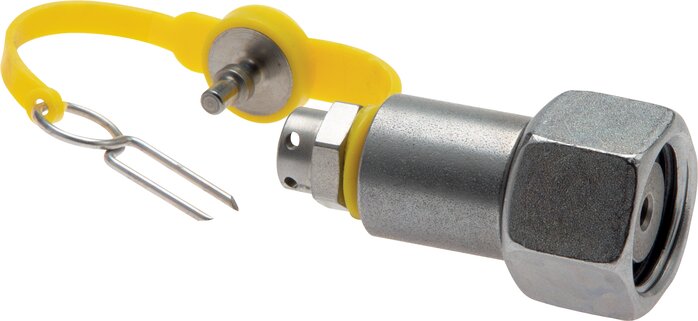

Exemplary representation: Plug-in measuring connection with hydraulic sealing cone

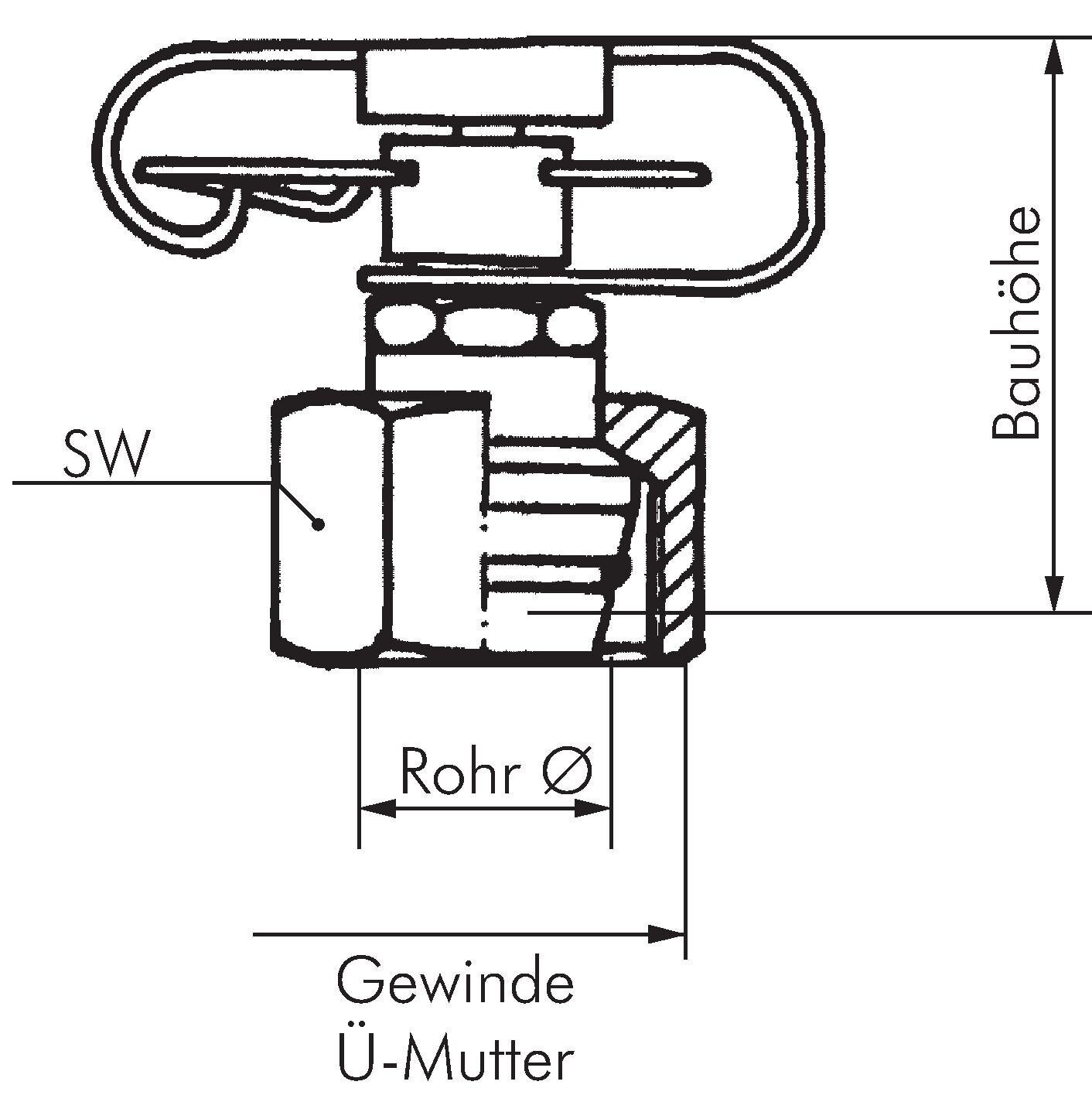

detailed view: Plug-in measuring connection

Materials:

Body: zinc plated steel, seal: NBR

Temperature range:

-20 to +100 °C

Application:

Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 680) atlas9_seiten/680.pdf

Test couplings with hydraulic sealing cone, push-in fitting:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

ME ST DKO 6 L

Plug test coupling 6 L-sealing cone

34,56€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	6 L	M 12x1,5	315

ME ST DKO 8 L

Plug test coupling 8 L-sealing cone

31,74€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	8 L	M 14x1,5	315

ME ST DKO 10 L

Plug test coupling 10 L-sealing cone

40,86€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	10 L	M 16x1,5	315

ME ST DKO 12 L

Plug test coupling 12 L-sealing cone

34,03€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	12 L	M 18x1,5	315

ME ST DKO 15 L

Plug test coupling 15 L-sealing cone

35,96€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	15 L	M 22x1,5	315

ME ST DKO 18 L

Plug test coupling 18 L-sealing cone

29,56€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	18 L	M 26x1,5	315

ME ST DKO 22 L

Plug test coupling 22 L-sealing cone

33,59€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	22 L	M 30x2	160

ME ST DKO 28 L

Plug test coupling 28 L-sealing cone

50,92€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	28 L	M 36x2	160

ME ST DKO 35 L

Plug test coupling 35 L-sealing cone

59,10€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	35 L	M 45x2	160

ME ST DKO 42 L

Plug test coupling 42 L-sealing cone

75,16€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
light model series	42 L	M 52x2	160

ME ST DKO 6 S

Plug test coupling 6 S-sealing cone

37,41€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	6 S	M 14x1,5	400

ME ST DKO 8 S

Plug test coupling 8 S-sealing cone

36,60€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	8 S	M 16x1,5	400

ME ST DKO 10 S

Plug test coupling 10 S-sealing cone

35,15€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	10 S	M 18x1,5	400

ME ST DKO 12 S

Plug test coupling 12 S-sealing cone

42,41€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	12 S	M 20x1,5	400

ME ST DKO 14 S

Plug test coupling 14 S-sealing cone

43,14€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	14 S	M 22x1,5	400

ME ST DKO 16 S

Plug test coupling 16 S-sealing cone

36,70€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	16 S	M 24x1,5	400

ME ST DKO 20 S

Plug test coupling 20 S-sealing cone

41,17€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	20 S	M 30x2	400

ME ST DKO 25 S

Plug test coupling 25 S-sealing cone

50,92€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	25 S	M 36x2	400

ME ST DKO 30 S

Plug test coupling 30 S-sealing cone

62,21€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	30 S	M 42x2	400

ME ST DKO 38 S

Plug test coupling 38 S-sealing cone

109,35€ incl. VAT

Model series	Pipe diameter (outer) [mm]	Union nut thread	Operating pressure [bar]
heavy model series	38 S	M 52x2	315
