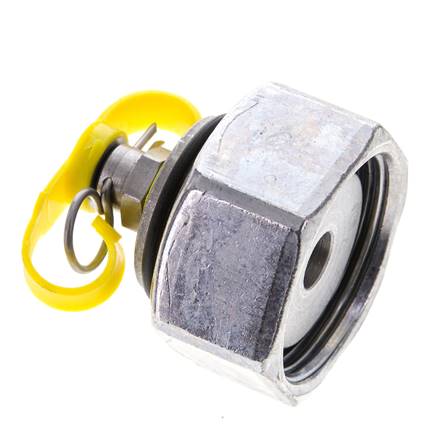

Plug test coupling 28 L-sealing cone
{{ $t('shop.all.artikelnummer') }}:
ME ST DKO 28 L
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: zinc plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Body: zinc plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | light model series |
| Pipe diameter (outer) [mm] | 28 L |
| Union nut thread | M 36x2 |
| Operating pressure [bar] | 160 |
| Height [mm] | 42,0 |
{{ $t('shop.display.artikel.info') }} MESTDKO28L
| {{ $t('shop.all.gewicht') }} | 220 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571487867 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 680) atlas9_seiten/680.pdf
