Item group

Solenoid valves & accessories for valve terminals, for series S1R & S2R

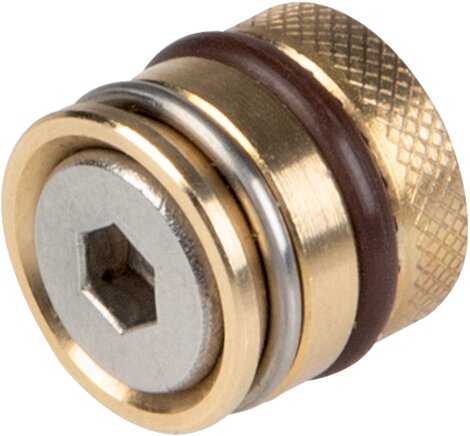

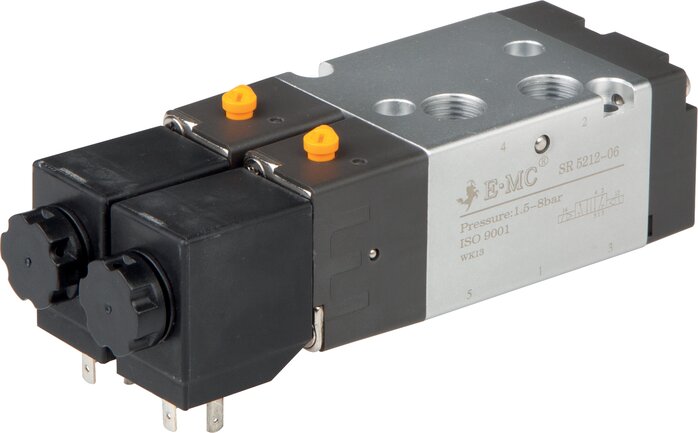

Exemplary representation: 5/2-way pulse valve / 5/3-way solenoid valve Exemplary representation: Pressure separation Schematic symbol: 5/2-way solenoid pulse valve Schematic symbol: 5/3-way solenoid valve (middle position closed) Schematic symbol: 5/3-way solenoid valve (middle position deaerates) Schematic symbol: 5/3-way solenoid valve (middle position ventilates)

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:

-5 to +60 °C

Operating pressure:

1,5 to 8 bar

Media:

oiled and unoiled filtered compressed air

Scope of delivery:

RV valve is supplied without screws and seal. If required, order additional screws and seal (type V51-REP or V52-REP). SR valve is supplied including screws and seal.

Note:

These valves can simply be screwed onto valve positions of an existing valve terminal to extend the functional range of a standard terminal or to replace a defective valve.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 772_772a) atlas9_seiten/772_772a.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Solenoid valves & accessories for valve terminals, for series S1R & S2R:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
12,86€ incl. VAT
