Signal fittings, Classic

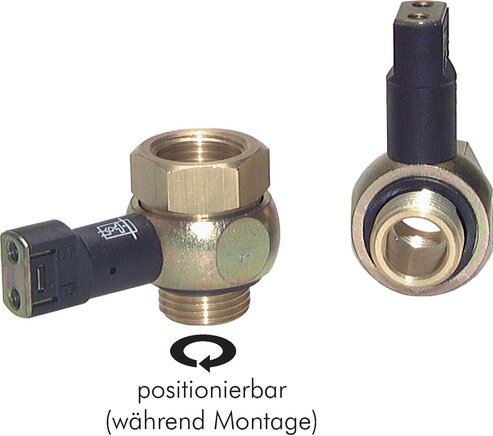

Exemplary representation: Signal screw connection with female thread Exemplary representation: Signal screw connection with plug-in connection Exemplary representation: Signal screw connection with electrical signal output

Materials:

Body: Brass, nickel-plated brass, plastic, seals: NBR

Switching time:

3 ms

Electrical connection values (Type PPE):

max. 2 A, 0 - 48 V DC, 250 V AC

Power consumption (PPE type):

Direct current: 5 W, alternating current: 10 VA

Protection class (PPE type):

IP 40

Function:

A pneumatic sensor fitting takes over the function of the limit switch (pneumatic or electric signal). The screw connection is screwed into the input hole of a cylinder and scans the working pressure of the cylinder. If the screw connection shows no pressure, the screw connection switches over from (P) 1 to (S) 5.

Warning:

Signal screw connections detect reaching the end position only through a pressure drop. However, this pressure drop can also occur if the cylinder is blocked in its movement path. If there is danger of such a blockage, we recommend using pneumatic cylinder switches, which react directly to the magnetic field of a magnetic piston.

Advantages:

•pure pneumatic control, no electrical energy required,
•simple installation,
•compact design

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 789) atlas9_seiten/789.pdf
    Documentation doku/pp.pdf
