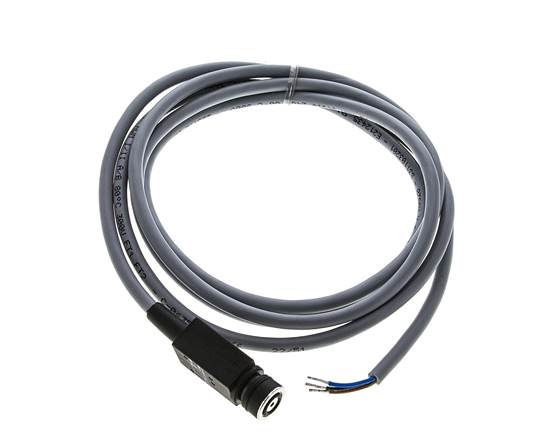

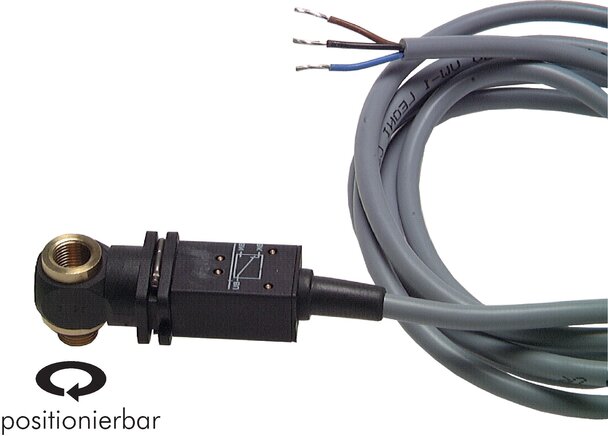

pneumatic sensor fitting G 1/8", electrical signal output (changeover contact)
{{ $t('shop.all.artikelnummer') }}:
PPE 18
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Brass, nickel-plated brass, plastic, seals: NBR
Switching time:
3 ms
Electrical connection values (Type PPE):
max. 2 A, 0 - 48 V DC, 250 V AC
Power consumption (PPE type):
Direct current: 5 W, alternating current: 10 VA
Protection class (PPE type):
IP 40
Function:
A pneumatic sensor fitting takes over the function of the limit switch (pneumatic or electric signal). The screw connection is screwed into the input hole of a cylinder and scans the working pressure of the cylinder. If the screw connection shows no pressure, the screw connection switches over from (P) 1 to (S) 5.
Warning:
Signal screw connections detect reaching the end position only through a pressure drop. However, this pressure drop can also occur if the cylinder is blocked in its movement path. If there is danger of such a blockage, we recommend using pneumatic cylinder switches, which react directly to the magnetic field of a magnetic piston.
Advantages:
•pure pneumatic control, no electrical energy required,
•simple installation,
•compact design
Body: Brass, nickel-plated brass, plastic, seals: NBR
Switching time:
3 ms
Electrical connection values (Type PPE):
max. 2 A, 0 - 48 V DC, 250 V AC
Power consumption (PPE type):
Direct current: 5 W, alternating current: 10 VA
Protection class (PPE type):
IP 40
Function:
A pneumatic sensor fitting takes over the function of the limit switch (pneumatic or electric signal). The screw connection is screwed into the input hole of a cylinder and scans the working pressure of the cylinder. If the screw connection shows no pressure, the screw connection switches over from (P) 1 to (S) 5.
Warning:
Signal screw connections detect reaching the end position only through a pressure drop. However, this pressure drop can also occur if the cylinder is blocked in its movement path. If there is danger of such a blockage, we recommend using pneumatic cylinder switches, which react directly to the magnetic field of a magnetic piston.
Advantages:
•pure pneumatic control, no electrical energy required,
•simple installation,
•compact design
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Signal connection version | electrical signal output (changeover contact) |
| External thread | G 1/8" |
| Female thread | G 1/8" |
| Signal connection (cable length) [MTR] | 2 |
| Temperature range [°C] | -15 to +60 |
| Operating pressure [bar] | 3 - 8 |
| reaction pressure [bar] | 0,5 |
{{ $t('shop.display.artikel.info') }} PPE18
| {{ $t('shop.all.gewicht') }} | 135 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571549794 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 789) atlas9_seiten/789.pdf
Documentation doku/pp.pdf
Documentation doku/pp.pdf
