Item group

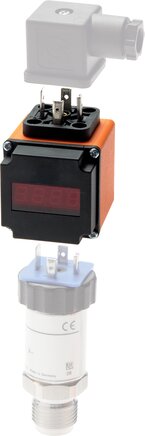

Sandwich plug-on display for measuring transducer (4-20 mA), LED
Application:
The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: Polyamide, front pane: PMMA
Display:
4-digit LED display, height of digits 7.6 mm
Temperature range:
0 to +60 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
Can be set for measurement every 0.3 seconds to a measurement every 20 seconds.
Programming:
Using 2 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Advantages:
•Display rotatable in 90° steps and therefore, easily adjustable to fit different installation situations
Optional:
programmable switching output (PNP, normally closed or normally open, max. 90 mA) -S
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 684) atlas9_seiten/684.pdf
Documentation doku/aa1000.pdf
Documentation doku/aa1000.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }}
{{ $t('shop.display.artikelgruppe.weniger_informationen') }}
{{ $t('shop.display.artikelgruppe.filtern') }}
Sandwich plug-on display for measuring transducer (4-20 mA), LED:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }} AA 1000-S
LED plug-on display f. Trans-mitter, Switching output (PNP, normally closed or normally open, max. 9
