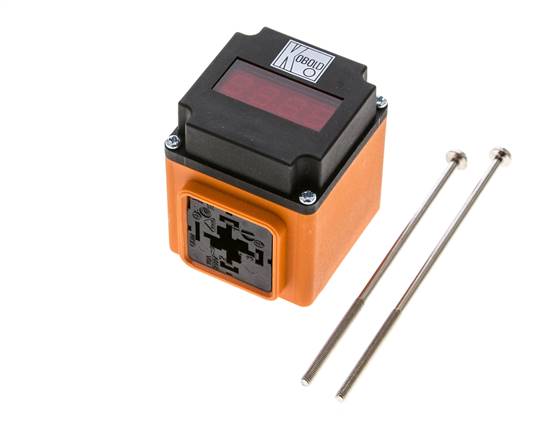

LED plug-on display f. Trans-mitter, Switching output (PNP, normally closed or normally open, max. 9
{{ $t('shop.all.artikelnummer') }}:
AA 1000-S
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: Polyamide, front pane: PMMA
Display:
4-digit LED display, height of digits 7.6 mm
Temperature range:
0 to +60 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
Can be set for measurement every 0.3 seconds to a measurement every 20 seconds.
Programming:
Using 2 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Advantages:
•Display rotatable in 90° steps and therefore, easily adjustable to fit different installation situations
Optional:
programmable switching output (PNP, normally closed or normally open, max. 90 mA) -S
The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: Polyamide, front pane: PMMA
Display:
4-digit LED display, height of digits 7.6 mm
Temperature range:
0 to +60 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
Can be set for measurement every 0.3 seconds to a measurement every 20 seconds.
Programming:
Using 2 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Advantages:
•Display rotatable in 90° steps and therefore, easily adjustable to fit different installation situations
Optional:
programmable switching output (PNP, normally closed or normally open, max. 90 mA) -S
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Switching output (PNP, normally closed or normally open, max. 90 mA, programmable) |
{{ $t('shop.display.artikel.info') }} AA1000-S
| {{ $t('shop.all.gewicht') }} | 100 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571215989 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85312020 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 684) atlas9_seiten/684.pdf
Documentation doku/aa1000.pdf
