Item group

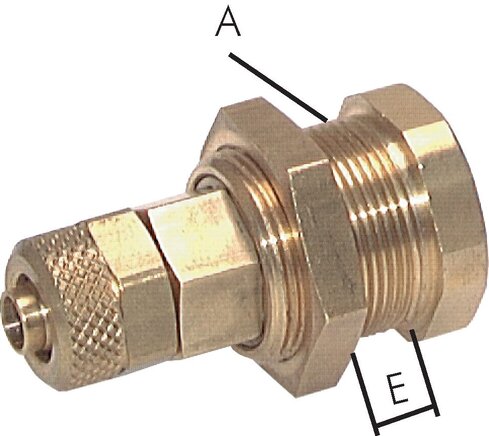

Quick release coupling sockets with union nut & bulkhead threads, NW 5

Materials:

Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:

-0,95 to 35 bar

Flow*:

510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)

Application:

For example, fire service, ambulances and buses, which are supplied externally by a compressed air system for emergencies. Connecting the coupling: Inserting the plug. Loosening the coupling: Pull on the plug and hose, the coupling loosens automatically.

Installation:

To guarantee the pull-off function the coupling must be mounted with the bulkhead thread and supplied using an elastic hose.

Optional:

Can be used for plug shut-off on both sides -BA
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Documents:

More information Less information
Quick release coupling sockets with union nut & bulkhead threads, NW 5:
7 of 7 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
