Pulse generator for steam trap and other solenoid valves

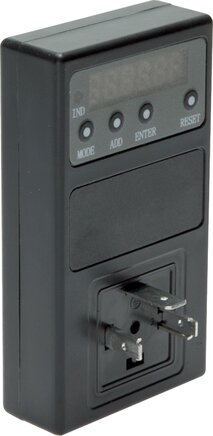

Exemplary representation: Cycle encoder (standard timer) for solenoid valves Exemplary representation: Cycle encoder (electronic timer) for solenoid valves

Application:

Pulse generators can be assembled easily between valve plugs according to DIN 43650 A/EN 175301-803 A (plug size 3) and the solenoid. A longer fastening screw and seal is enclosed with the pulse generator. The standard timer permits infinite adjustment of the valve actuation between 0,5 and 10 seconds and a cycle time of between 0,5 and 45 minutes.

The electronic timer allows for the following programmable functions: ON/OFF cycle (when there is power, valve actuation for a time of 1 second to 10 minutes, with a cycle time of 1 second to 100 hours), OFF/ON cycle (same as ON/OFF cycle, when there is power, the valve only is actuated after the cycle time has elapsed), single ON (when there is power, the valve is actuated once for a time of 1 second to 10 minutes).

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 779) atlas9_seiten/779.pdf
    Documentation doku/kondenstime.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Pulse generator for steam trap and other solenoid valves:
