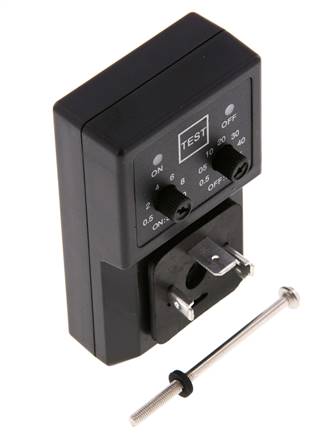

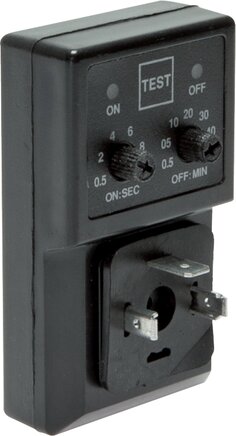

Pulse generator (Standard timer) for solenoid valves
{{ $t('shop.all.artikelnummer') }}:
KONDENS TIME
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Pulse generators can be assembled easily between valve plugs according to DIN 43650 A/EN 175301-803 A (plug size 3) and the solenoid. A longer fastening screw and seal is enclosed with the pulse generator. The standard timer permits infinite adjustment of the valve actuation between 0,5 and 10 seconds and a cycle time of between 0,5 and 45 minutes.
The electronic timer allows for the following programmable functions: ON/OFF cycle (when there is power, valve actuation for a time of 1 second to 10 minutes, with a cycle time of 1 second to 100 hours), OFF/ON cycle (same as ON/OFF cycle, when there is power, the valve only is actuated after the cycle time has elapsed), single ON (when there is power, the valve is actuated once for a time of 1 second to 10 minutes).
Pulse generators can be assembled easily between valve plugs according to DIN 43650 A/EN 175301-803 A (plug size 3) and the solenoid. A longer fastening screw and seal is enclosed with the pulse generator. The standard timer permits infinite adjustment of the valve actuation between 0,5 and 10 seconds and a cycle time of between 0,5 and 45 minutes.
The electronic timer allows for the following programmable functions: ON/OFF cycle (when there is power, valve actuation for a time of 1 second to 10 minutes, with a cycle time of 1 second to 100 hours), OFF/ON cycle (same as ON/OFF cycle, when there is power, the valve only is actuated after the cycle time has elapsed), single ON (when there is power, the valve is actuated once for a time of 1 second to 10 minutes).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard timer |
| Electrical connection | 24 - 240 V AC/DC, max. 1A |
{{ $t('shop.display.artikel.info') }} KONDENSTIME
| {{ $t('shop.all.gewicht') }} | 60 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571829254 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84149000 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 779) atlas9_seiten/779.pdf
Documentation doku/kondenstime.pdf
3D CAD file (volume model) protected/cad/3d/74092/kondenstime373679.stp
Documentation doku/kondenstime.pdf
3D CAD file (volume model) protected/cad/3d/74092/kondenstime373679.stp
