Item group

Inductive proximity switch (M 12 - M 18), stainless steel

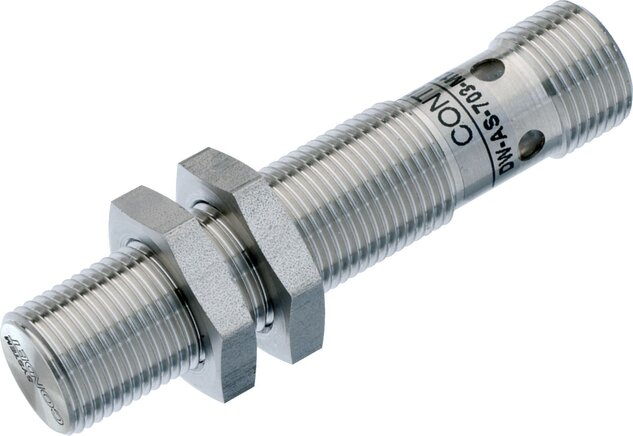

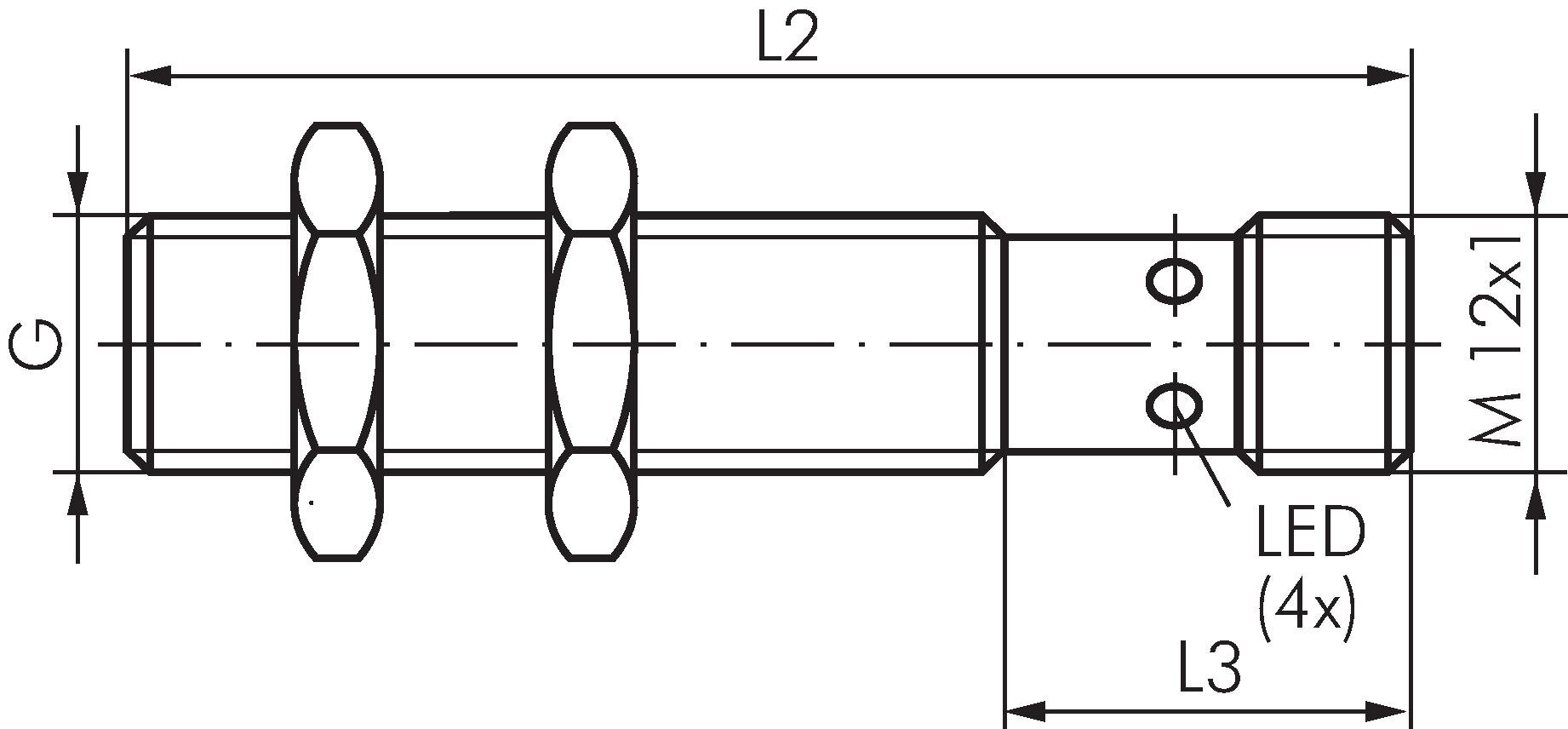

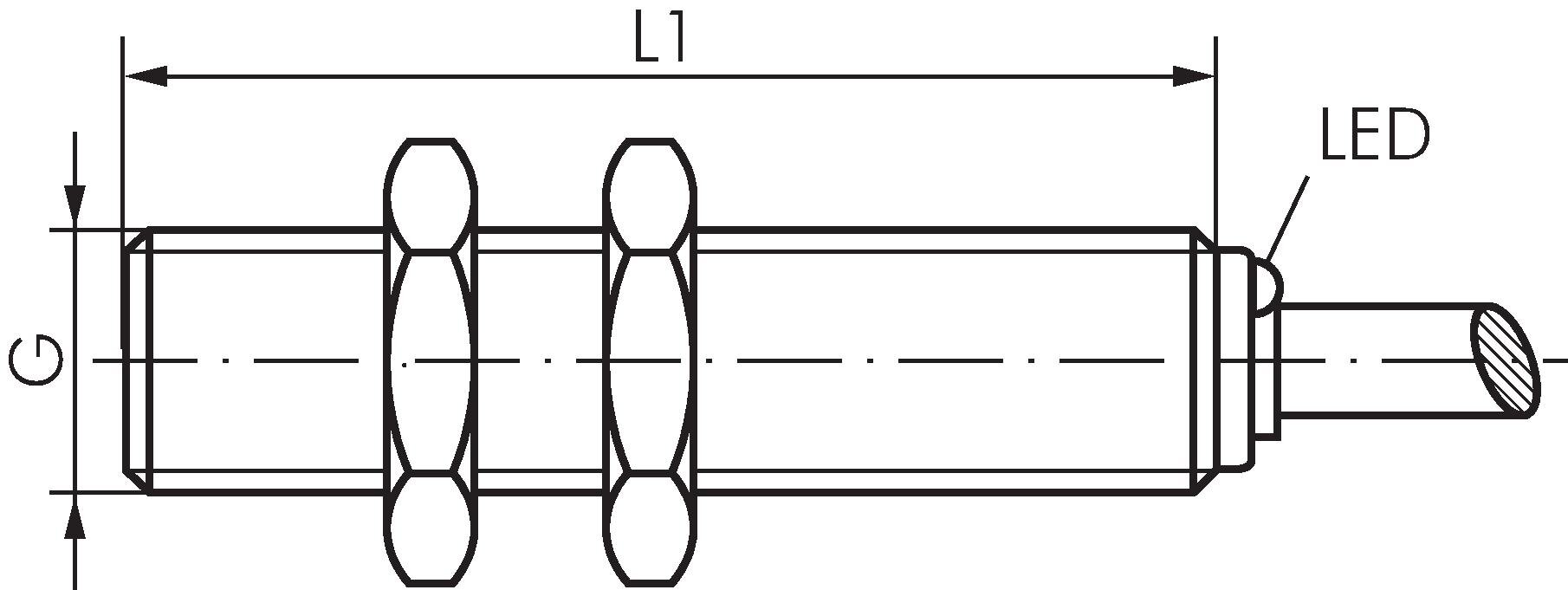

Exemplary representation: Inductive proximity switch, flush mountable, with cable Exemplary representation: Inductive proximity switch, flush mountable, with connector IO-Link Schematic symbol: M 12 plug (A-coded, 4-pole)

Materials:

Housing and sensor surface (made of one piece): Stainless steel 1.4305

Temperature range:

-25°C to max. +85°C (M 12 with 3 mm safety distance: -25°C to max. +70°C)

Protection class:

IP 68 / IP 69

Operating voltage:

10 to 30 V (DC)

Control output (PNP):

1 switching output (normally open), max. 200 mA

Switching capacity:

max. 6 W

Switching status indicator:

LED, orange

Protection circuit:

Short-circuit protection, induction protection, reverse polarity protection

Advantages:

•IO link capable,
•extremely durable,
•good chemical resistance,
•pressure resistant up to 60 bar / 80 bar

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 889) atlas9_seiten/889.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Inductive proximity switch (M 12 - M 18), stainless steel:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
109,94€ incl. VAT
162,48€ incl. VAT
169,82€ incl. VAT
{{ $t('shop.all.unverbindliche_richtwerte') }}
