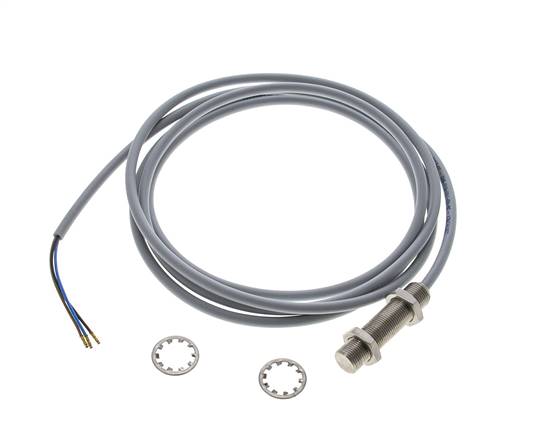

Ind. proximity switch, M 12, SN3 - Cable (2 m)
{{ $t('shop.all.artikelnummer') }}:
SIN M12-B-3 ES
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing and sensor surface (made of one piece): Stainless steel 1.4305
Temperature range:
-25°C to max. +85°C (M 12 with 3 mm safety distance: -25°C to max. +70°C)
Protection class:
IP 68 / IP 69
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link capable,
•extremely durable,
•good chemical resistance,
•pressure resistant up to 60 bar / 80 bar
Housing and sensor surface (made of one piece): Stainless steel 1.4305
Temperature range:
-25°C to max. +85°C (M 12 with 3 mm safety distance: -25°C to max. +70°C)
Protection class:
IP 68 / IP 69
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link capable,
•extremely durable,
•good chemical resistance,
•pressure resistant up to 60 bar / 80 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Connection | Cable (2 m) |
| Version | flush installable, NO contact |
| burst-strength/compressive strength [bar] | 80 |
| Design | M 12 |
| Safety distance (SN) [mm] | 3 |
| G | M 12x1 |
| L1 [mm] | 50 |
| H1 [mm] | 9 |
| B1 [mm] | 10 |
| B2 [mm] | 25 |
| Temperature range [°C] | -25 to +85 |
{{ $t('shop.display.artikel.info') }} SINM12-B-3ES
| {{ $t('shop.all.gewicht') }} | 100 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571889913 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 889) atlas9_seiten/889.pdf
