Item group

Filters - Standard, up to 40,000 l/min*

Name: STANDARD filter, G 1/4", Standard 1
Brand: Landefeld
SKU: DF 11
Price: 32.92 EUR
Availability: InStock

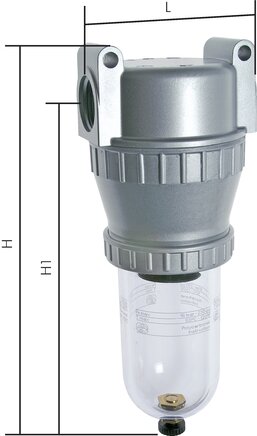

Exemplary representation: Filter - Standard

Version:

Filtering using the centrifugal principal and sintered filter

Materials:

Body: die-cast zinc Z410, condensate container: polycarbonate

Temperature range:

-10 to +60 °C

Input pressure:

1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)

Condensate draining:

semi-automatic**

Media:

Compressed air, neutral gases

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)

Optional:

Version with protective cage -S, Version with metal bowl* (1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar), -M, automatic discharge* -AM, Automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC

*When combined with a metal bowl max. 16 bar, **as soon as the inlet pressure falls below the minimum input pressure, the drain valve opens automatically. By screwing the drain screw tight, you can prevent the semi-automatic drain valve from opening

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 605) atlas9_seiten/605.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf

Filters - Standard, up to 40,000 l/min*:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

DF 11

STANDARD filter, G 1/4", Standard 1

32,92€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 1/4"	800	Plastic container

DF 12

STANDARD filter, G 3/8", Standard 1

32,92€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 3/8"	800	Plastic container

DF 11 S

STANDARD filter, G 1/4", Standard 1

49,97€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 1/4"	800	Plastic container with protective cage

DF 12 S

STANDARD filter, G 3/8", Standard 1

49,97€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 3/8"	800	Plastic container with protective cage

DF 11 M

STANDARD filter, G 1/4", Standard 1

39,90€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 1/4"	800	Metal bowl without inspection tube

DF 12 M

STANDARD filter, G 3/8", Standard 1

39,90€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 3/8"	800	Metal bowl without inspection tube

DF 11 AM

STANDARD filter, G 1/4", Standard 1

118,93€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 1/4"	800	Plastic container

DF 12 AM

STANDARD filter, G 3/8", Standard 1

118,93€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 3/8"	800	Plastic container

DF 11 M AM

STANDARD filter, G 1/4", Standard 1

120,77€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 1/4"	800	Metal bowl without inspection tube

DF 12 M AM

STANDARD filter, G 3/8", Standard 1

125,83€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 1	G 3/8"	800	Metal bowl without inspection tube

DF 22-5

STANDARD filter, G 3/8", Standard 2

60,54€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 3/8"	3100	Plastic container

DF 23-5

STANDARD filter, G 1/2", Standard 2

81,23€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 1/2"	3100	Plastic container

DF 22 S

STANDARD filter, G 3/8", Standard 2

82,19€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 3/8"	3100	Plastic container with protective cage

DF 22-5 S

STANDARD filter, G 3/8", Standard 2

83,35€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 3/8"	3100	Plastic container with protective cage

DF 23-5 S

STANDARD filter, G 1/2", Standard 2

95,27€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 1/2"	3100	Plastic container with protective cage

DF 22-5 M

STANDARD filter, G 3/8", Standard 2

74,96€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 3/8"	3100	Metal bowl without inspection tube

DF 23-5 M

STANDARD filter, G 1/2", Standard 2

89,95€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 1/2"	3100	Metal bowl without inspection tube

DF 22-5 AM

STANDARD filter, G 3/8", Standard 2

140,03€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 3/8"	3100	Plastic container

DF 23-5 AM

STANDARD filter, G 1/2", Standard 2

139,99€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 1/2"	3100	Plastic container

DF 22-5 M AM

STANDARD filter, G 3/8", Standard 2

162,34€ incl. VAT

Model series	Thread	flow [l/min]	Container design
Standard 2	G 3/8"	3100	Metal bowl without inspection tube
