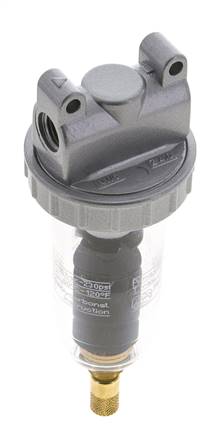

Item description
Version:
Filtering using the centrifugal principal and sintered filter

Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate

Temperature range:
-10 to +60 °C

Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)

Condensate draining:
semi-automatic**

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)

Optional:
Version with protective cage -S, Version with metal bowl* (1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar), -M, automatic discharge* -AM, Automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
Properties
Model se­ries Stan­dard 1
Thread G 1/4"
flow [l/min] 800
Con­tainer de­sign Plas­tic con­tainer
Con­den­sate drain au­to­matic
Mount­ing brack­ets ZW 10
Re­place­ment fil­ter FIL­TER DF00-​5
input pres­sure [bar] 1,5 - 16
Max. con­den­sate amount [cm³] 35
Fil­ter pore width 5 µm
H [mm] 149
H1 [mm] 130
L [mm] 48 (Ø 57)
Further information on DF11AM
Weight 370 g / pcs
GTIN 4050571247249
Customs duty number 84213925
RoHS compliant Yes
Documents
*When combined with a metal bowl max. 16 bar, **as soon as the inlet pressure falls below the minimum input pressure, the drain valve opens automatically. By screwing the drain screw tight, you can prevent the semi-automatic drain valve from opening


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
