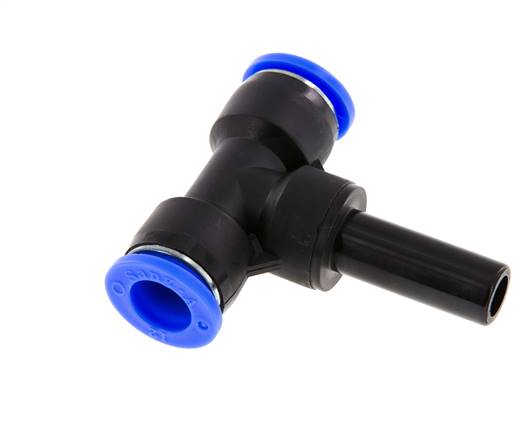

T push in fitting 12mm plug / push in nipple./hose, IQS standard
{{ $t('shop.all.artikelnummer') }}:
IQST 120H
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT, sleeve: POM, seal: NBR, holding claws: stainless steel, cartridge: nickel-plated ZnDC
Temperature range:
-20 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).
Advantages:
•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring
Body: nickel-plated brass / PBT, sleeve: POM, seal: NBR, holding claws: stainless steel, cartridge: nickel-plated ZnDC
Temperature range:
-20 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).
Advantages:
•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| D [mm] | 12 |
| D1 [mm] | 12 |
{{ $t('shop.display.artikel.info') }} IQST120H
| {{ $t('shop.all.gewicht') }} | 23 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571385347 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 55) atlas9_seiten/55.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqst120h274071.stp
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqst120h274071.stp
