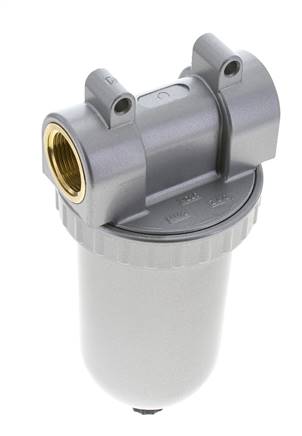

STANDARD filter, G 3/4", Standard 3
{{ $t('shop.all.artikelnummer') }}:
DF 34 M
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Optional:
Version with protective cage -S, Version with metal bowl* (1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar), -M, automatic discharge* -AM, Automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Optional:
Version with protective cage -S, Version with metal bowl* (1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar), -M, automatic discharge* -AM, Automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Standard 3 |
| Thread | G 3/4" |
| flow [l/min] | 4000 |
| Container design | Metal bowl without inspection tube |
| Condensate drain | Semi-automatic |
| Mounting brackets | ZW 30 |
| Replacement filter | FILTER 2 |
| input pressure [bar] | 1,5 - 25 |
| Max. condensate amount [cm³] | 65 |
| Filter pore width | 5 µm |
| H [mm] | 205 |
| H1 [mm] | 172 |
| L [mm] | 90 |
{{ $t('shop.display.artikel.info') }} DF34M
| {{ $t('shop.all.gewicht') }} | 1,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571247607 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84213925 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 605) atlas9_seiten/605.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
