Item description
Application:

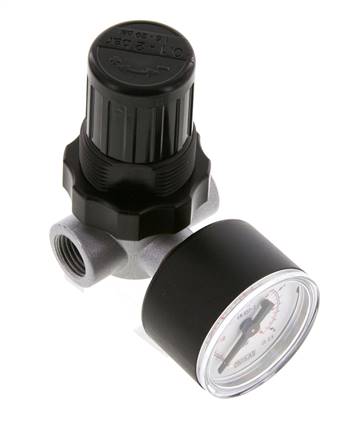

Manually adjustable relief valve to protect pneumatic devices from damage caused by overpressure.
Version:
spring-loaded diaphragm valve with adjustable opening pressure
Materials:
Body: die-cast zinc Z410, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection:
Mini: G 1/8" Standard G 1/4"

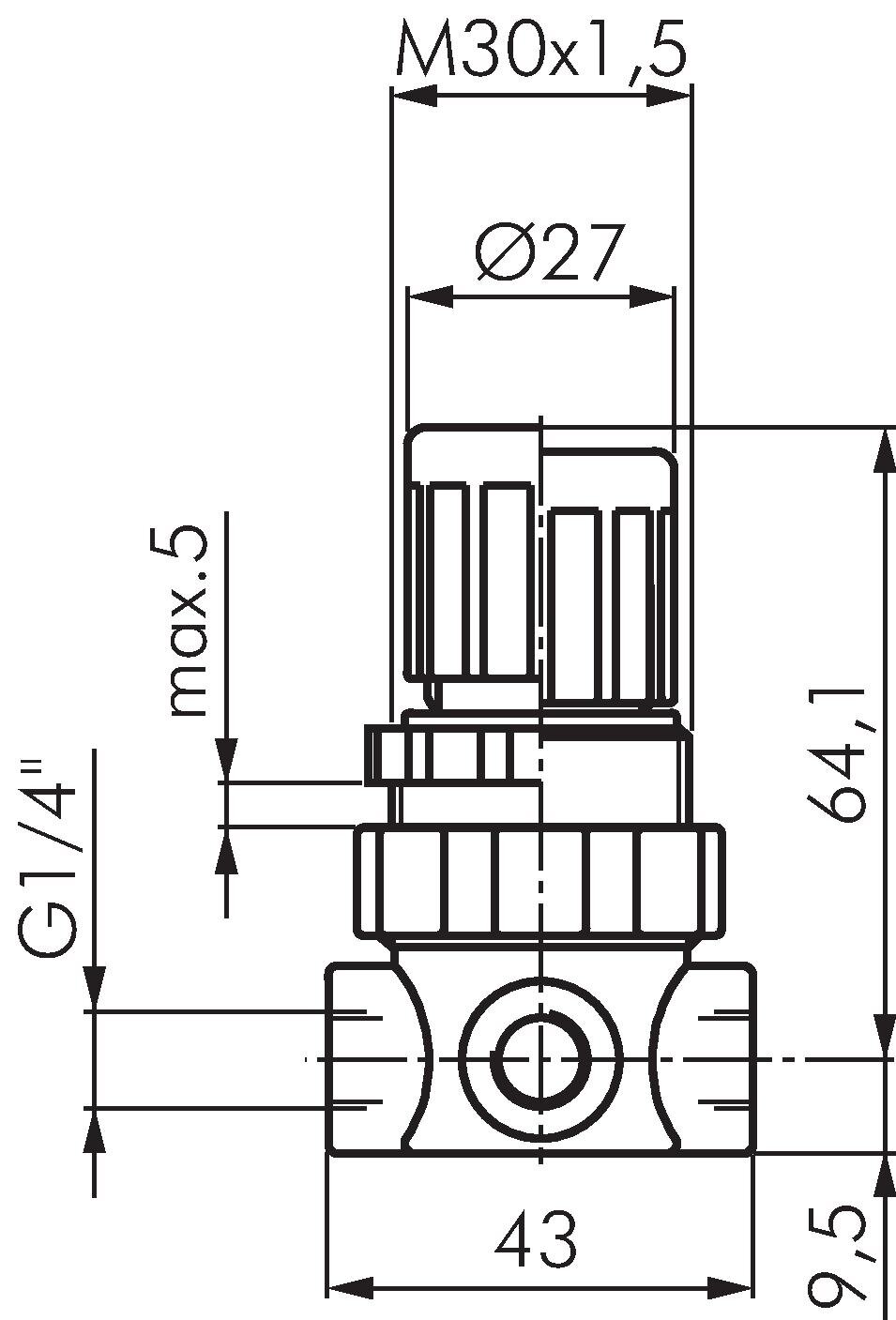

Switch panel thread:
Mini: M 30 x 1.5, standard: M 20 x 1.5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure limiting valve including pressure gauge
Warning:
Although it is similar in function, this valve does not replace the safety valve and cannot be used as a pressure regulator!
Information:
When configuring the pressure limiter, please note that only the reaction pressure of the pressure limiting valve can be adjusted. Depending on the flow performance, the actual pressure at the pressure input side can be higher by the value specified for overpressure.
Manually adjustable relief valve to protect pneumatic devices from damage caused by overpressure.
Version:
spring-loaded diaphragm valve with adjustable opening pressure
Materials:
Body: die-cast zinc Z410, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection:
Mini: G 1/8" Standard G 1/4"
Switch panel thread:
Mini: M 30 x 1.5, standard: M 20 x 1.5
Media:
Compressed air, neutral gases
Scope of delivery:
Pressure limiting valve including pressure gauge
Warning:
Although it is similar in function, this valve does not replace the safety valve and cannot be used as a pressure regulator!
Information:
When configuring the pressure limiter, please note that only the reaction pressure of the pressure limiting valve can be adjusted. Depending on the flow performance, the actual pressure at the pressure input side can be higher by the value specified for overpressure.
Properties
Further information on DVU01-3
| Weight | 220 g / pcs |
| GTIN | 4050571277284 |
| Customs duty number | 84814090 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 642) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
