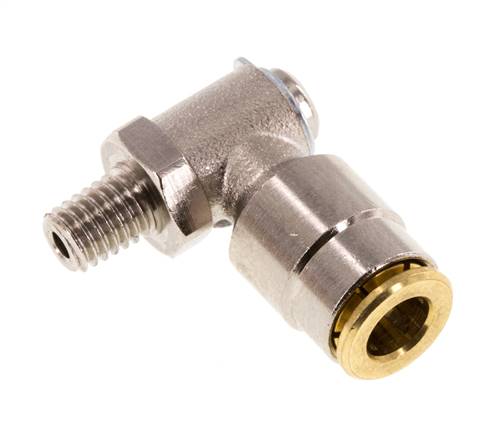

High pressure L-push in fitting. M 6 (conical)-6mm (pos.)
Item number:
IQSL M66 HD
Item description
Materials:
Body: nickel-plated brass, collet: brass, seal: NBR, Seeger ring: zinc-plated steel
Temperature range:
-20 to +80 °C
Application:
Central lubrication
Media:
Oils, greases
Advantages:
•Ideal for lubrication systems,
•threads: M 6 to R 1/4"
Warning! Can only be used with high pressure polyamid tubes!
Operating pressure:
max. 250 bar
Body: nickel-plated brass, collet: brass, seal: NBR, Seeger ring: zinc-plated steel
Temperature range:
-20 to +80 °C
Application:
Central lubrication
Media:
Oils, greases
Advantages:
•Ideal for lubrication systems,
•threads: M 6 to R 1/4"
Warning! Can only be used with high pressure polyamid tubes!
Operating pressure:
max. 250 bar
Properties
| R | M 6 (conical) |
| D [mm] | 6 |
Further information on IQSLM66HD
| Weight | 19 g / pcs |
| GTIN | 4050571380601 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 57) (PDF)
- Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
