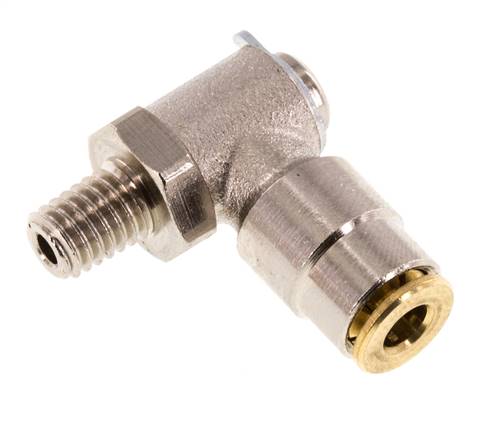

High pressure L-push in fitting. M 6 (conical)-4mm (pos.)
{{ $t('shop.all.artikelnummer') }}:
IQSL M64 HD
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, collet: brass, seal: NBR, Seeger ring: zinc-plated steel
Temperature range:
-20 to +70 °C
Operating pressure:
max. 250 bar
Application:
Central lubrication
Media:
Oils, greases
Advantages:
•Ideal for lubrication systems,
•threads: M 6 to R 1/4"
Warning! Can only be used with high pressure polyamid tubes!
Body: nickel-plated brass, collet: brass, seal: NBR, Seeger ring: zinc-plated steel
Temperature range:
-20 to +70 °C
Operating pressure:
max. 250 bar
Application:
Central lubrication
Media:
Oils, greases
Advantages:
•Ideal for lubrication systems,
•threads: M 6 to R 1/4"
Warning! Can only be used with high pressure polyamid tubes!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| R | M 6 (conical) |
| D [mm] | 4 |
{{ $t('shop.display.artikel.info') }} IQSLM64HD
| {{ $t('shop.all.gewicht') }} | 17 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571380588 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 57) atlas9_seiten/57.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/72420/iqslm64hd#228656.stp
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/72420/iqslm64hd#228656.stp
