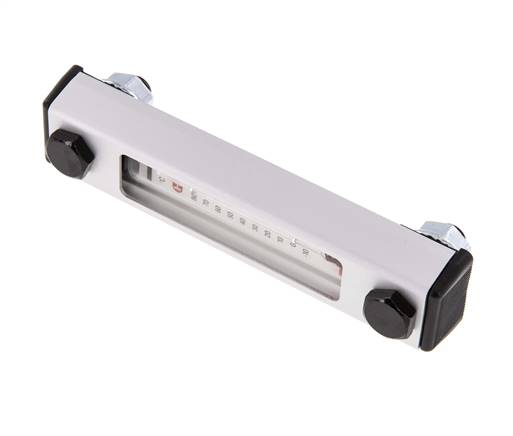

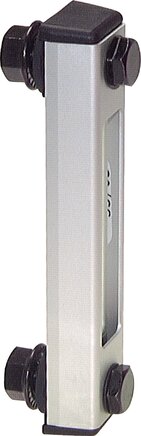

Filling level indicator 127 mm (Connection dimension), with thermometer
{{ $t('shop.all.artikelnummer') }}:
FSAT 127
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
Level indicators are used to check the oil level in hydraulic tanks and are available with or without a thermometer.
Materials:
Connection and standpipe: Plastic, housing frame: Aluminum, screw and nut: Steel, seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 1 bar
Media:
Hydraulic oils on the basis of mineral oil
Level indicators are used to check the oil level in hydraulic tanks and are available with or without a thermometer.
Materials:
Connection and standpipe: Plastic, housing frame: Aluminum, screw and nut: Steel, seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 1 bar
Media:
Hydraulic oils on the basis of mineral oil
{{ $t('shop.display.artikel.eigenschaften_headline') }}

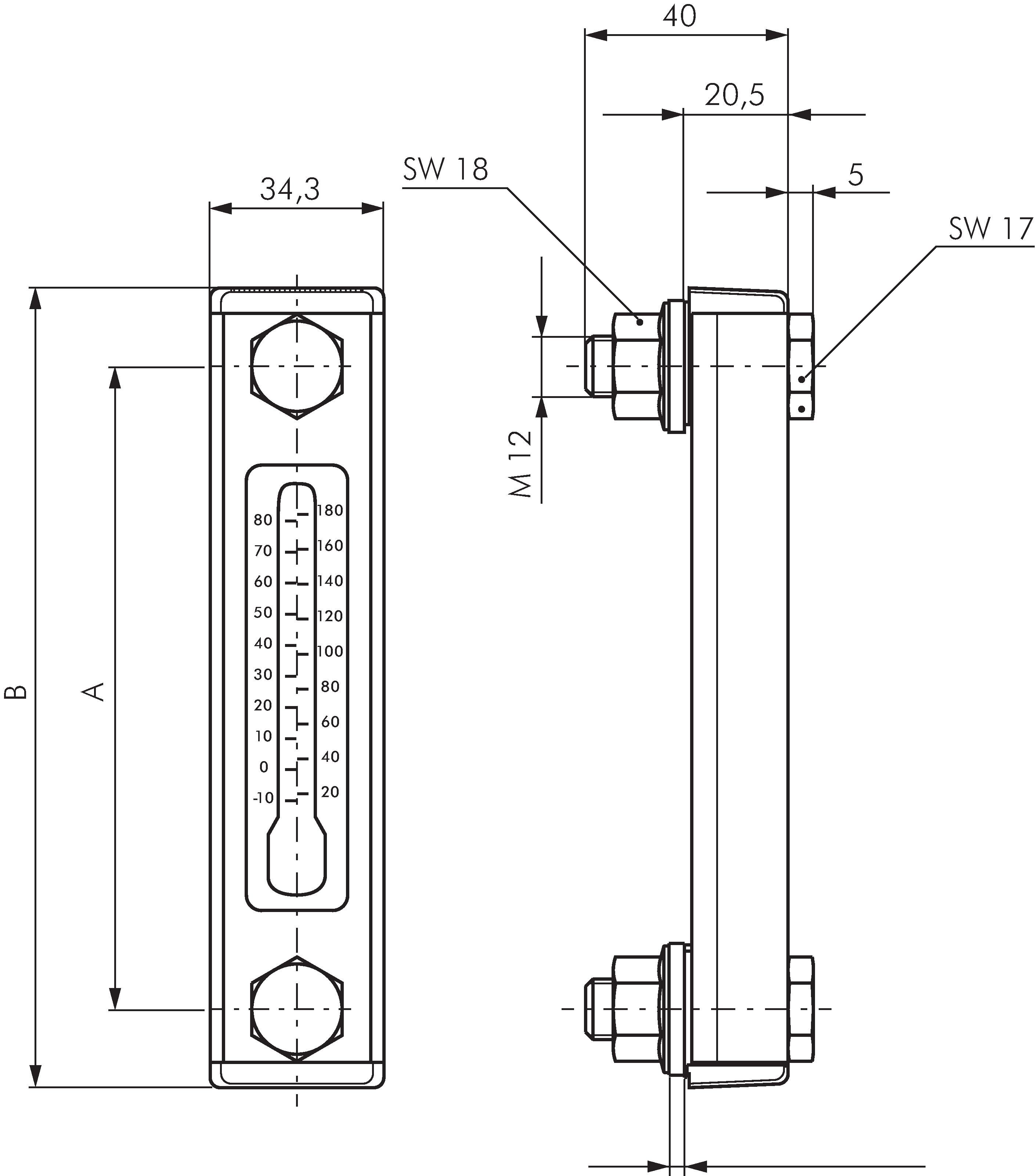

| Version | with thermometer |
| A [mm] | 127 |
| B [mm] | 159 |
| max. container wall thickness [mm] | 8 |
| Temperature measuring range [°C] | -10 to +80 |
{{ $t('shop.display.artikel.info') }} FSAT127
| {{ $t('shop.all.gewicht') }} | 180 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571309350 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90261089 |
| {{ $t('shop.all.hersteller') }} | Hydac |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 822) atlas9_seiten/822.pdf
Documentation doku/fullstandsanzeige.pdf
3D CAD file (volume model) protected/cad/3d/70329/fsat127260472.stp
Documentation doku/fullstandsanzeige.pdf
3D CAD file (volume model) protected/cad/3d/70329/fsat127260472.stp
