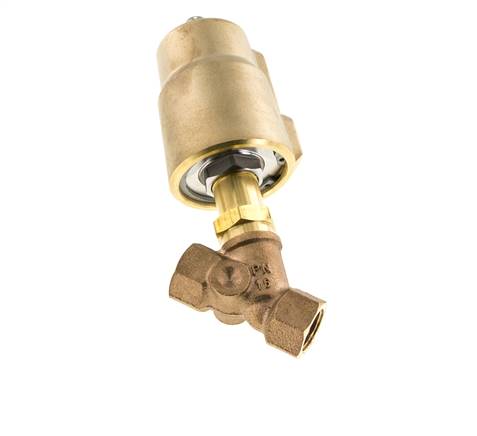

Angled poppet valve Brass, G 1/2", closed, PTFE spindle seal
{{ $t('shop.all.artikelnummer') }}:
U 212 MS PTFE **
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type Brass: valve body: Red bronze (2-1/2" to 3": brass), seat sealing: PTFE, spindle seal: NBR, control cylinder: brass / aluminium, spindle: Stainless steel, seals: NBR
Type 1.4408: valve body: 1.4408, valve internal parts: 1.4301, seat and spindle seal: PTFE, control cylinder: Nickel-plated brass / aluminium, spindle: Stainless steel, seals: FKM
Temperature range:
-20°C to max. +85°C (Type 1.4408: -40°C to max. +200°C)
Control pressure:
4 to 10 bar (6 bar optimum), control connection: G 1/8"
Flow direction:
Closes with media flow (not recommended for liquids with high flow velocity). If necessary, use the -GS option to close against the media flow.
Optional:
PTFE spindle seal (up to 200°C) -PTFE**, Version closes against the medium stream (for use with liquids), please ask about working pressures. -GS, control cylinder made of stainless steel 1.4581 with FKM seals -2A***
Type Brass: valve body: Red bronze (2-1/2" to 3": brass), seat sealing: PTFE, spindle seal: NBR, control cylinder: brass / aluminium, spindle: Stainless steel, seals: NBR
Type 1.4408: valve body: 1.4408, valve internal parts: 1.4301, seat and spindle seal: PTFE, control cylinder: Nickel-plated brass / aluminium, spindle: Stainless steel, seals: FKM
Temperature range:
-20°C to max. +85°C (Type 1.4408: -40°C to max. +200°C)
Control pressure:
4 to 10 bar (6 bar optimum), control connection: G 1/8"
Flow direction:
Closes with media flow (not recommended for liquids with high flow velocity). If necessary, use the -GS option to close against the media flow.
Optional:
PTFE spindle seal (up to 200°C) -PTFE**, Version closes against the medium stream (for use with liquids), please ask about working pressures. -GS, control cylinder made of stainless steel 1.4581 with FKM seals -2A***
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Version | PTFE spindle seal |
| Zero position | closed |
| Thread | G 1/2" |
| L [mm] | 66 |
| Operating pressure [bar] | 0 - 16 |
| Repair sets | U 212 MS REP |
| Temperature range [°C] | -20 to +200 |
{{ $t('shop.display.artikel.info') }} U212MSPTFE
| {{ $t('shop.all.gewicht') }} | 1,3 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571711818 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 531) atlas9_seiten/531.pdf
Documentation doku/u.pdf
3D CAD file (volume model) protected/cad/3d/70247/u212msptfe#68643.stp
Documentation doku/u.pdf
3D CAD file (volume model) protected/cad/3d/70247/u212msptfe#68643.stp
