Item group

Angled poppet valves, pneumatically actuated

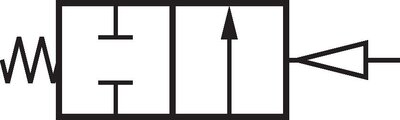

Exemplary representation: Angle seat valve, pneumatically actuated, brass Exemplary representation: Angle seat valve, pneumatically actuated, 1.4408 Schematic symbol: Zero position closed Schematic symbol: Zero position open

Materials:

Type Brass: valve body: Red bronze (2-1/2" to 3": brass), seat sealing: PTFE, spindle seal: NBR, control cylinder: brass / aluminium, spindle: Stainless steel, seals: NBR

Type 1.4408: valve body: 1.4408, valve internal parts: 1.4301, seat and spindle seal: PTFE, control cylinder: Nickel-plated brass / aluminium, spindle: Stainless steel, seals: FKM

Temperature range:

-20°C to max. +85°C (Type 1.4408: -40°C to max. +200°C)

Control pressure:

4 to 10 bar (6 bar optimum), control connection: G 1/8"

Flow direction:

Closes with media flow (not recommended for liquids with high flow velocity). If necessary, use the -GS option to close against the media flow.

Optional:

PTFE spindle seal (up to 200°C) -PTFE**, Version closes against the medium stream (for use with liquids), please ask about working pressures. -GS, control cylinder made of stainless steel 1.4581 with FKM seals -2A***
*Aluminium actuator, **Only for valves made of red bronze or brass, ***Control connection: G 1/4"

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 531) atlas9_seiten/531.pdf
    Documentation doku/u.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Angled poppet valves, pneumatically actuated:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
1434,83€ incl. VAT
1592,67€ incl. VAT
