Skupina artiklov
Spojne doze iz POM / PVDF z notranjim navojem, NW 5
Type POM:
Materials:
Body: POM black, springs and valve: Stainless steel 1.4310, seals: NBR
Temperature range:
-20°C to max. +80°C
Operating pressure:
0 - 10 bar
Flow of air (water)**
550 l/min (7 l/min), in conjunction with blocking coupling plug -BA: 310 l/min (2.7 l/min)
Type PVDF:
Materials:
Body: PVDF natural, springs and valve: stainless steel 1.4571, seals: FKM
Temperature range:
-20°C to max. +120°C
Operating pressure:
0 - 8 bar
Flow of air (water)**
550 l/min (7 l/min), in conjunction with blocking coupling plug -BA: 310 l/min (2.7 l/min)
Note:
Coupling sockets and coupling plugs (open or locking) can be combined as required.
Compatible with*:
Rectus (21, 90), Camozzi, EWO, KANI
*Some names and designations are registered trademarks of the respective manufacturers, **6 bar inlet pressure, 0.5 bar pressure difference
Dokumenti:
Več informacij
Spojne doze iz POM / PVDF z notranjim navojem, NW 5:
3 od 3 izdelkov

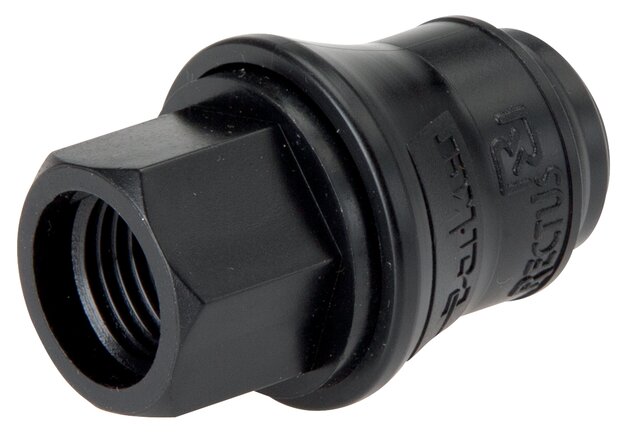

KDGI 14 NW5 PO
Coupling socket (NW5) G 1/4", POM
26,16 €
z DDV
KDGI 18 NW5 PV
Coupling socket (NW5) G 1/8", PVDF
93,87 €
z DDV

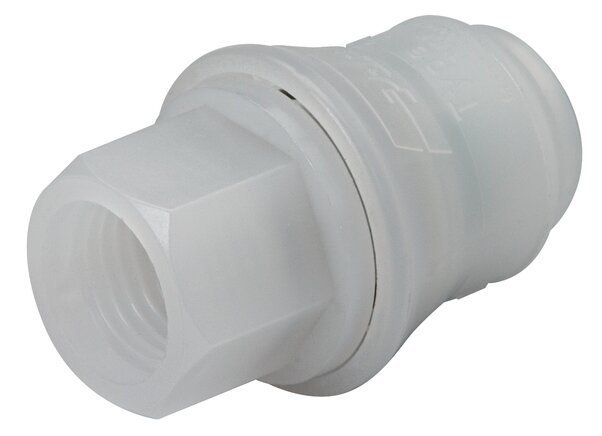

KDGI 14 NW5 PV
Coupling socket (NW5) G 1/4", PVDF
63,82 €
z DDV
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
