Skupina artiklov

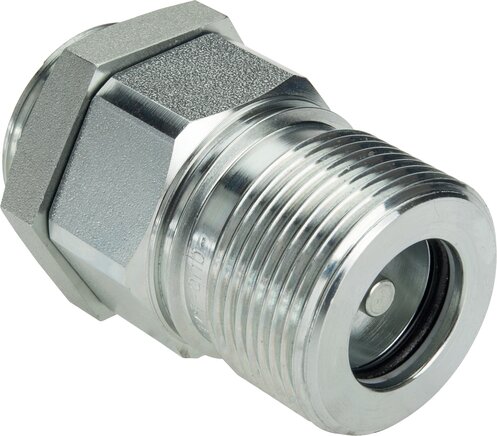

Navojna spojka z notranjim navojem za vozila, do 350 barov
Function:
Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal.
Materials:

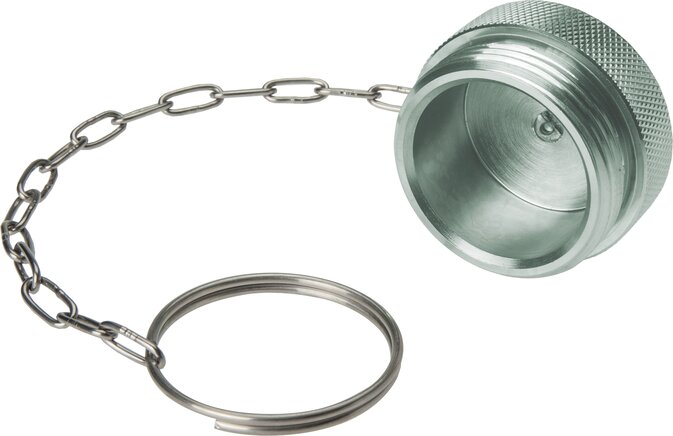

Body, dust protection and chain: Zinc plated steel; seal: NBR
Temperature range:
-25 do +100 °C
Bulkhead thread (only fixed halves):
G 1-1/4" (41.9 mm), max. bulkhead thickness: 10 (EDBRF 10: 16)
Suitable:
Vehicle hydraulics, such as tippers, silo vehicles, construction machines, etc.
Advantages:
•secure against pressure thrusts and pressure vibrations,
•streamlining design of the flow rate range,
•fixed halves designed as bulkhead design,
•compatible with many other products (e.g. EDBRO or Faster type CVE)
•streamlining design of the flow rate range,
•fixed halves designed as bulkhead design,
•compatible with many other products (e.g. EDBRO or Faster type CVE)
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 331) atlas9_seiten/331.pdf
