Item group

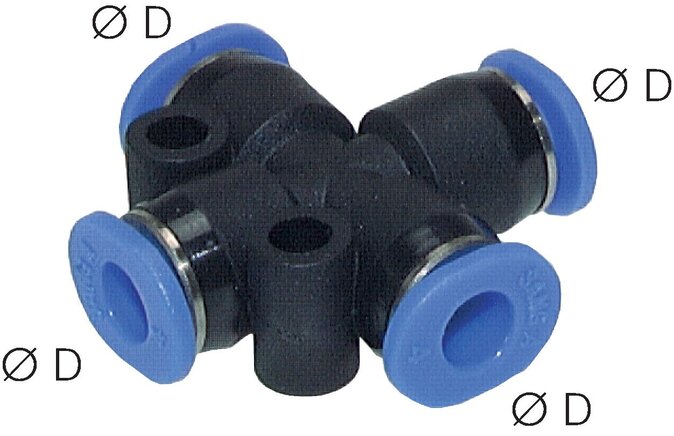

X push-in connectors, Mini

Materials:

Body: nickel-plated brass (M 3: nickel-plated steel) / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated brass (only silicone-free seals and lubricants are used during assembly)

Temperature range:

0 to +60 °C

Operating pressure:

-0,95 to 10 bar

Media:

Oiled and unoiled compressed air, neutral gasses

Advantages:

•Extremely compact design,
•M 7 thread available,
•M 3, M 5, M 6, M 7 and G 1/8” threads are outfitted with a captive O-ring, which helps prevent the thread from tearing and seals it reliably even after multiple assemblies

Documents:

More information Less information

Filter items

D [mm]
Please select
X push-in connectors, Mini:
3 of 3 articles
€6.60 incl. VAT
Immediately available
€6.75 incl. VAT
Immediately available
€7.03 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
