Item group

Viscosity compensated flow monitors, up to 350 bar

Name: flow monitor G 1/2", 0,5 to 1,6 l/min, Nickel-plated brass
Brand: Landefeld
SKU: DWV 12-1,6 MSV
Price: 371.53 EUR
Availability: InStock

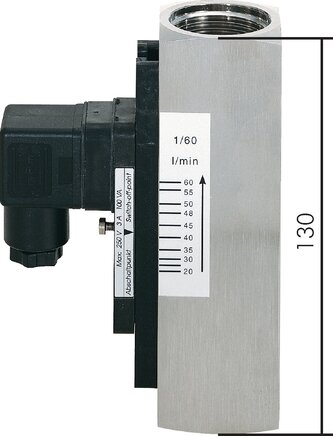

Exemplary representation: Viscosity-compensated flow monitor, G 1", 1.4571

Exemplary representation: Viscosity-compensated flow monitor, G 1/2", 1.4571

Application:

Flow monitors monitor a flow quantity that can be set. If this is exceeded or undershot, a contact gets actuated. A voltage supply is not necessary because of the potential-free reed contacts.

Materials:

Body: Brass nickel-plated or 1.4571, Spring: 1.4571, seals: FKM, Display: Polycarbonate / 1.4301

Temperature range:

-20 to +120 °C, Environment: max. +80 °C

Protection class:

IP 65

Measurement principle:

Spring loaded float

Installation position:

arbitrarily (preferred from bottom to top)

Direction of flow:

only in one direction

Electrical connection:

G 1/2": angle plug DIN 43650 / EN 175301-803 C (size 0C, 3-pole), G 1": angle plug DIN 43650 / EN 175301-803 A (size 3, 3-pole)

Switch type:

Closer (NO)

Switching capacity:

G 1/2": 230 V AC, 60 VA, max. 3 A / 230 V DC, 60 W, max. 3 A, G 1": 250 V AC, 100 VA, max. 5 A / 250 V DC, 100 W, max. 5 A

Media:

Oils and other fluids with 30 - 600 cSt viscosity (Option -W: water and aqueous media)

Optional:

for water as the medium and aqueous fluids -W

Advantages:

•Switching point does not have to be adjusted according to the medium and pressure.

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 693a) atlas9_seiten/693a.pdf
Documentation doku/dwv.pdf

Viscosity compensated flow monitors, up to 350 bar:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

DWV 12-1,6 MSV

flow monitor G 1/2", 0,5 to 1,6 l/min, Nickel-plated brass

371,53€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	0,5 - 1,6	G 1/2"

DWV 12-3 MSV

flow monitor G 1/2", 0,8 to 3 l/min, Nickel-plated brass

371,53€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	0,8 - 3	G 1/2"

DWV 12-7 MSV

flow monitor G 1/2", 2 to 7 l/min, Nickel-plated brass

363,31€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	2 - 7	G 1/2"

DWV 10-10 MSV

flow monitor G 1", 3 to 10 l/min, Nickel-plated brass

717,49€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	3 - 10	G 1"

DWV 10-15 MSV

flow monitor G 1", 5 to 15 l/min, Nickel-plated brass

700,11€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	5 - 15	G 1"

DWV 10-24 MSV

flow monitor G 1", 8 to 24 l/min, Nickel-plated brass

700,11€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	8 - 24	G 1"

DWV 10-30 MSV

flow monitor G 1", 10 to 30 l/min, Nickel-plated brass

700,11€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	10 - 30	G 1"

DWV 10-45 MSV

flow monitor G 1", 15 to 45 l/min, Nickel-plated brass

700,11€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	15 - 45	G 1"

DWV 10-60 MSV

flow monitor G 1", 20 to 60 l/min, Nickel-plated brass

700,11€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	20 - 60	G 1"

DWV 10-90 MSV

flow monitor G 1", 30 to 90 l/min, Nickel-plated brass

717,49€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	30 - 90	G 1"

DWV 10-120 MSV

flow monitor G 1", 35 to 110 l/min, Nickel-plated brass

700,11€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Oils	35 - 110	G 1"

DWV 12-1,6 MSV-W

flow monitor G 1/2", 0,4 to 1,8 l/min, Nickel-plated brass

225,41€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Water	0,4 - 1,8	G 1/2"

DWV 12-3 MSV-W

flow monitor G 1/2", 0,8 to 3,2 l/min, Nickel-plated brass

225,41€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Water	0,8 - 3,2	G 1/2"

DWV 12-7 MSV-W

flow monitor G 1/2", 2 to 7 l/min, Nickel-plated brass

225,41€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Water	2 - 7	G 1/2"

DWV 10-30 MSV-W

flow monitor G 1", 10 to 30 l/min, Nickel-plated brass

535,48€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Water	10 - 30	G 1"

DWV 10-45 MSV-W

flow monitor G 1", 15 to 45 l/min, Nickel-plated brass

535,48€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Water	15 - 45	G 1"

DWV 10-60 MSV-W

flow monitor G 1", 20 to 60 l/min, Nickel-plated brass

535,48€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Water	20 - 60	G 1"

DWV 10-90 MSV-W

flow monitor G 1", 30 to 90 l/min, Nickel-plated brass

535,48€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
Nickel-plated brass	Water	30 - 90	G 1"

DWV 12-1,6 ES

flow monitor G 1/2", 0,5 to 1,6 l/min, 1.4571

806,13€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
1.4571	Oils	0,5 - 1,6	G 1/2"

DWV 12-3 ES

flow monitor G 1/2", 0,8 to 3 l/min, 1.4571

788,20€ incl. VAT

Material	for medium	Switching range [l/min]	Thread
1.4571	Oils	0,8 - 3	G 1/2"
