Vacuum filters, up to 6000 l/min

Name: Vacuum filter G 3/8"
Brand: Landefeld
SKU: F 38 VU
Price: 133.85 EUR
Availability: InStock

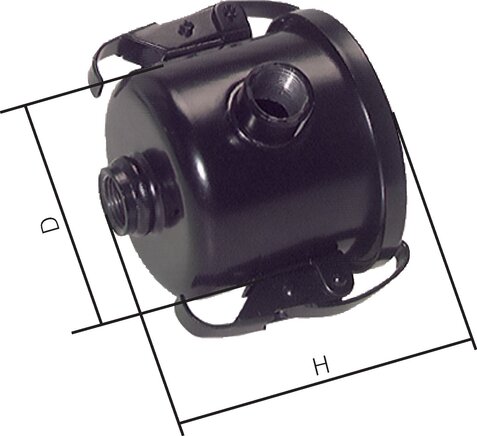

Exemplary representation: Filter element

Application:

These vacuum filters are used particularly in vacuum generators (pumps and blowers) with design-dependent sensitivity.

Materials:

Housing: Sheet steel, black powder-coated, seals: NBR, filter element: Special paper in a double casing made of sheet steel (can be blown out when dry)

Pore width in the filter:

5 - 7 µm

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 912) atlas9_seiten/912.pdf
Documentation doku/fvu.pdf

Vacuum filters, up to 6000 l/min:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

F 38 VU

Vacuum filter G 3/8"

133,85€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 3/8"	25	420

F 12 VU

Vacuum filter G 1/2"

148,74€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 1/2"	45	750

F 34 VU

Vacuum filter G 3/4"

164,51€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 3/4"	50	830

F 10 VU

Vacuum filter G 1"

185,78€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 1"	90	1500

F 114 VU

Vacuum filter G 1-1/4"

243,03€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 1-1/4"	150	2500

F 112 VU

Vacuum filter G 1-1/2"

524,43€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 1-1/2"	200	3300

F 20 VU

Vacuum filter G 2"

762,77€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 2"	320	5300

F 30 VU

Vacuum filter G 3"

845,21€ incl. VAT

Version	Thread	Suction capacity (at 0.02 bar pressure difference) [m³/h]	Suction capacity (at 0.02 bar pressure difference) [l/min]
Vacuum filter	G 3"	360	6000

F 38 VU E

Spare filter element for vacuum filter

37,77€ incl. VAT

Version
