Item group

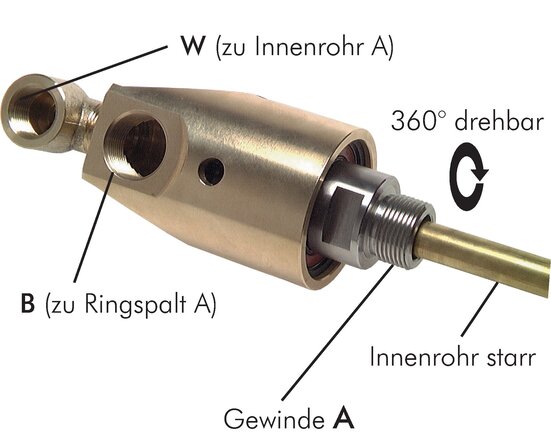

Universal rotary joint for stationary inside ring up to 3500 U/min, up to 50 bar
Suitable:
Rotary joint for combined supply and drainage. The inner tube* sticks out into the drum to be supplied with the medium and takes over the supplying of the medium. These rotary joints are suitable for use of non-contaminated water.
Materials:
Body: brass, seal: carbon graphite / carbide
Temperature range:
0 to +95 °C
Operating pressure:
max. 50 bar (G 2": max 40 bar)
Media:
Water
Advantages:
•The springs are external to the media flow in order to minimise the loss of pressure and avoid turbulence.
Warning:
Maximum pressure and speed values may not occur simultaneously. If in doubt, please ask us for confirmation. A liquid pressure that exceeds 8 bar is only allowed when using with cooling water and a maximum temperature of +50°C. Not suitable for reverse operation
Warning:
Take note of left and right-handed threads: Left-handed thread for feeding into clockwise rotating drums. Right-handed thread for feeding into counter-clockwise rotating drums.
*inner tube not included in the scope of delivery
{{ $t('shop.all.dokumente') }}:
Catalogue page Pneumatic Atlas 8 (Page 230) atlas8_seiten/230.pdf
Documentation doku/ddf.pdf
Documentation doku/ddf.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }}
{{ $t('shop.display.artikelgruppe.weniger_informationen') }}
{{ $t('shop.display.artikelgruppe.filtern') }}
Universal rotary joint for stationary inside ring up to 3500 U/min, up to 50 bar:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }} {{ $t('shop.all.unverbindliche_richtwerte') }}
