Item group

Union nuts for hose screw connections, PN 16/40

Name: Union nut Brass, G 1/8", 4 / 6 mm
Brand: Landefeld
SKU: UM 18 MS
Price: 1.45 EUR
Availability: InStock

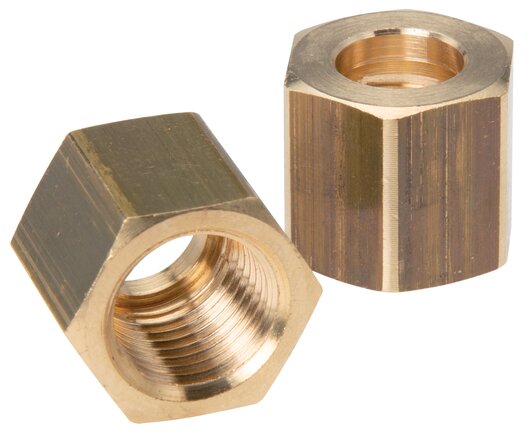

Exemplary representation: Union nut, brass

Exemplary representation: Union nut, stainless steel

Warning:

Version of the sleeves and union nuts varies depending on the manufacturer and material. Mixing of the individual parts with other manufacturers or materials is not recommended.

*also in L = 16 mm available, Product numbers: UM 12 MS K and UM 12 ES K

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 127) atlas9_seiten/127.pdf

Union nuts for hose screw connections, PN 16/40:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

UM 18 MS

Union nut Brass, G 1/8", 4 / 6 mm

1,45€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/8"	4 / 6	11

UM 14 MS

Union nut Brass, G 1/4", 4 / 6 mm

1,30€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/4"	4 / 6	15,5

UM 14-9 MS

Union nut Brass, G 1/4", 9 mm

1,68€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/4"	9	15,5

UM 38 MS

Union nut Brass, G 3/8", 4 / 6 / 9 mm

1,63€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 3/8"	4 / 6 / 9	14,5

UM 12 MS *

Union nut Brass, G 1/2", 6 / 9 / 13 mm

3,05€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/2"	6 / 9 / 13	20,5

UM 12 MS K

Union nut Brass, G 1/2", 6 / 9 / 13 mm

1,76€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/2"	6 / 9 / 13	16

UM 34-13 MS

Union nut Brass, G 3/4", 13 mm

6,55€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 3/4"	13	13,5

UM 34 MS

Union nut Brass, G 3/4", 19 mm

6,57€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 3/4"	19	13,5

UM 10-19 MS

Union nut Brass, G 1", 19 mm

9,00€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1"	19	17

UM 10 MS

Union nut Brass, G 1", 25 mm

6,35€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1"	25	16

UM 14 MS LH

Union nut Brass, G 1/4" LH, 4 / 6 mm

1,94€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/4" LH	4 / 6	15,5

UM 14-9 MS LH

Union nut Brass, G 1/4" LH, 9 mm

1,95€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/4" LH	9	15,5

UM 38 MS LH

Union nut Brass, G 3/8" LH, 4 / 6 / 9 mm

1,75€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 3/8" LH	4 / 6 / 9	14,5

UM 12 MS LH

Union nut Brass, G 1/2" LH, 6 / 9 / 13 mm

5,21€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
Brass	G 1/2" LH	6 / 9 / 13	20,5

UM 18 ES

Union nut 1.4571, G 1/8", 4 / 6 mm

15,01€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
1.4571	G 1/8"	4 / 6	12

UM 14 ES

Union nut 1.4571, G 1/4", 4 / 6 / 9 mm

6,13€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
1.4571	G 1/4"	4 / 6 / 9	14,5

UM 38 ES

Union nut 1.4571, G 3/8", 4 / 6 / 9 mm

7,15€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
1.4571	G 3/8"	4 / 6 / 9	15,5

UM 12 ES *

Union nut 1.4571, G 1/2", 6 / 9 / 13 mm

10,97€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
1.4571	G 1/2"	6 / 9 / 13	20

UM 12 ES K

Union nut 1.4571, G 1/2", 6 / 9 / 13 mm

19,10€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
1.4571	G 1/2"	6 / 9 / 13	16

UM 34 ES

Union nut 1.4571, G 3/4", 13 / 19 mm

34,81€ incl. VAT

Material	Thread (G)	for hose screw connection [mm]	L [mm]
1.4571	G 3/4"	13 / 19	16
