Item group

Twist drill (metal), DIN 338 (Type N)

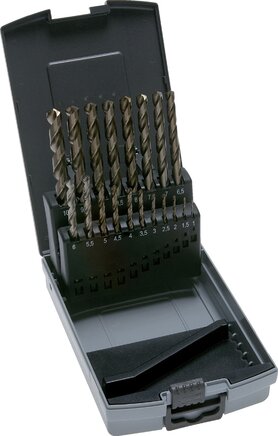

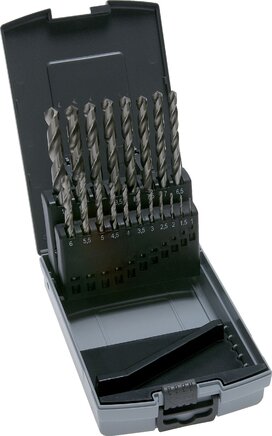

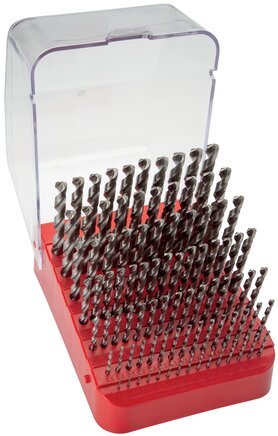

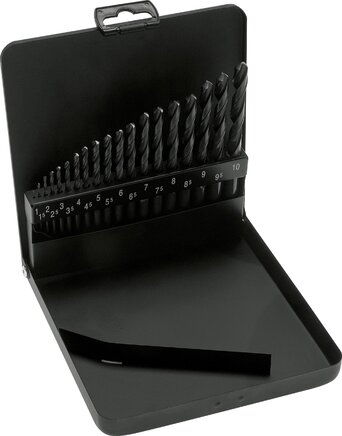

Exemplary representation: Twist drill (HSS-G) Exemplary representation: Twist drill (HSS-R) Exemplary representation: Twist drill (HSS-G Co 5) Exemplary representation: Twist drill set (HSS-R) Exemplary representation: Twist drill set (HSS-G) Exemplary representation: Twist drill set (HSSCO) Exemplary representation: Twist drill set (HSS-G) in workshop stand

Description:

Powerful, right-handed cutting type N twist drill, suitable for all normal drilling operations in common materials

Diameter tolerance:

h8

Qualities:

HSS-R:

Point angle: 118°, drill point thinning: Flat point, surface: black, economical, rolled twist drills made of high-performance, high-speed steel with high fracture resistance and ground chamfer. Use for steel, cast steel alloys and non-alloys (<900 N/mm² tensile strength), grey-, malleable-, ductile-, cast and sintered iron, nickel silver, graphite and short cutting aluminium alloys, brass and bronze.

HSS-G:

Point angle: 118 °, drill point thinning: from 3 mm cross grinding (DIN 1412 C), surface: bare. From the full ground twist drill made of high performance, high-speed steel with high rotation precision. Use for steel, cast steel alloys and non-alloys (<900 N/mm² tensile strength), grey-, malleable-, ductile-, cast and sintered iron, nickel silver, graphite and short cutting aluminium alloys, brass and bronze.

HSS-G Co 5 (HSS-E):

Point angle: 130°, drill point thinning: from 3 mm cross grinding (DIN 1412 C), surface: bare. From the full ground twist drill made of high performance, high-speed steel (5% cobalt alloy) with high rotation precision and good heat resistance. Use for steel, cast steel alloys and non-alloys (<1100 N/mm² tensile strength), grey-, malleable-, ductile-, cast and sintered iron, nickel silver, graphite and short cutting aluminium alloys, brass and bronze. In addition, can also be used for hot-working and cold-working steels, as well as rust and acid-resistant steels (stainless steels V2A / V4A).

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 986) atlas9_seiten/986.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Twist drill (metal), DIN 338 (Type N):
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
0,37€ incl. VAT
0,37€ incl. VAT
0,37€ incl. VAT
0,48€ incl. VAT
0,48€ incl. VAT
0,51€ incl. VAT
0,51€ incl. VAT
0,51€ incl. VAT
0,58€ incl. VAT
0,62€ incl. VAT
0,62€ incl. VAT
0,73€ incl. VAT
0,81€ incl. VAT
0,81€ incl. VAT
0,90€ incl. VAT
1,02€ incl. VAT
1,29€ incl. VAT
1,29€ incl. VAT
1,39€ incl. VAT
1,64€ incl. VAT
