Item group

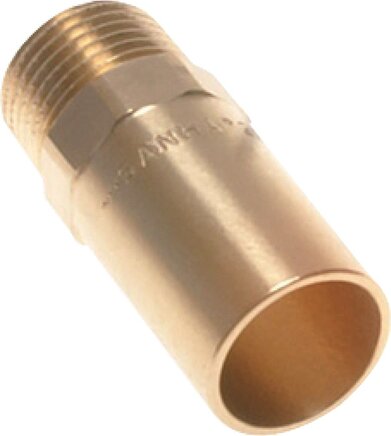

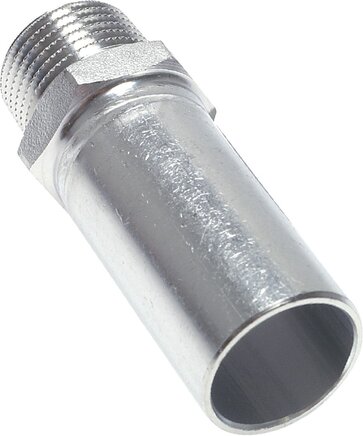

Transition sleeve nipple with pressing from the outside & male thread
Materials:
Bodies: Copper/copper alloy, type stainless steel: 1.4404,Seals: FKM (red)
Temperature range*:
-20 to +200 °C (depending on medium), temporarily max. +280 °C
Operating pressure:
Type copper / copper alloy: 16 bar, Vacuum up to -0.8 bar, Type stainless steel: Ø 15 - 22: 40 bar, Ø 28 - 35: 25 bar, Ø 42 - 54: 16 bar, all diameters: technical gases (for example compressed air, argon, nitrogen, carbon dioxide): 16 bar, Vacuum up to -0.8 bar
Fields of application:
Compressed air, cooling water, industrial water, heating water, heating oil systems, thermic solar systems with glycol or glycol water mixture
Advantages:
•thanks to the FKM seal also suitable for oil bearing compressed air and water/glycol mixtures,
•can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA,
•use with standard EN 1057 copper tubing (copper/copper alloy type),
•Use with our stainless steel system pipe 1.4404 manufactured according to DIN EN 10312 (Stainless steel type)
•can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA,
•use with standard EN 1057 copper tubing (copper/copper alloy type),
•Use with our stainless steel system pipe 1.4404 manufactured according to DIN EN 10312 (Stainless steel type)
Warning:
Crimped fittings made of C steel are not suitable for compressed air lines due to the risk of corrosion. We therefore do not offer them.
*due to the variety of applications, the following excerpt lists the max. temperature values: <br>compressed air, heating oil, water (without additives): -20°C to max. +120°C <br>glycol-water mixture, glycol: -20°C to max. +200°C (temporary up to max. +280°C)
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 134) atlas9_seiten/134.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }}
{{ $t('shop.display.artikelgruppe.weniger_informationen') }}
{{ $t('shop.display.artikelgruppe.filtern') }}

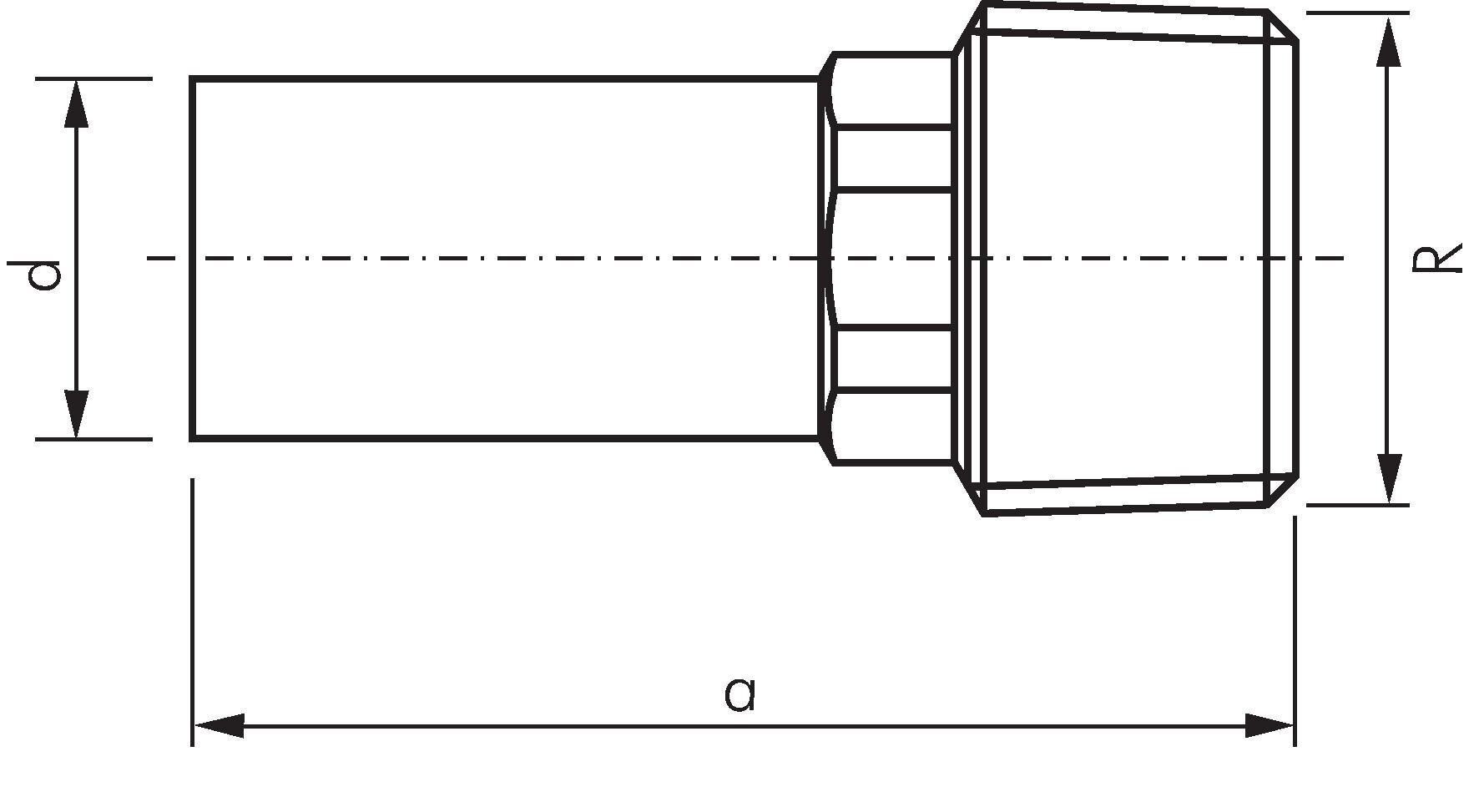

Transition sleeve nipple with pressing from the outside & male thread:
