Item group

Test couplings with hydraulic cutting ring fitting, M 16x2

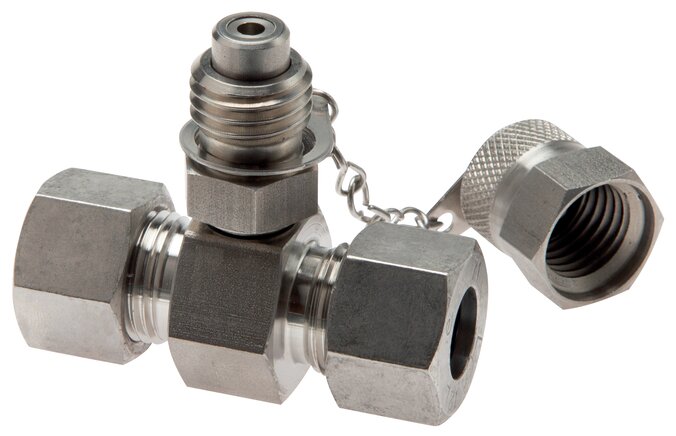

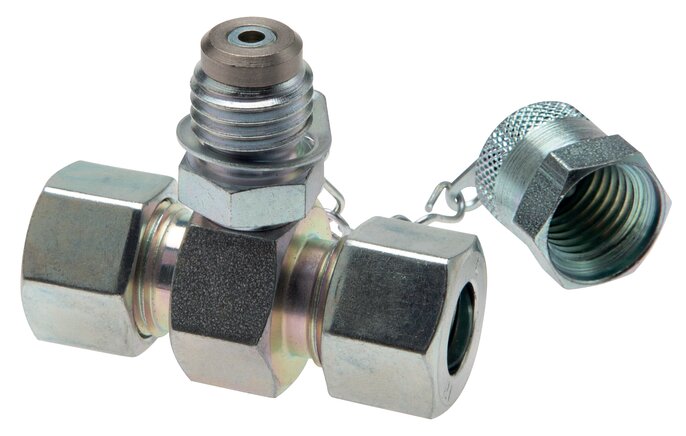

Exemplary representation: Measuring connections with hydraulic cutting ring fitting, galvanised steel Exemplary representation: Measuring connections with hydraulic cutting ring fitting, 1.4571 detailed view: Measuring connection

Materials:

Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR

Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM

Temperature range:

-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)

Application:

Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
*pipe centre / top edge

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 677) atlas9_seiten/677.pdf
    Documentation doku/mels.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Test couplings with hydraulic cutting ring fitting, M 16x2:
