Item group

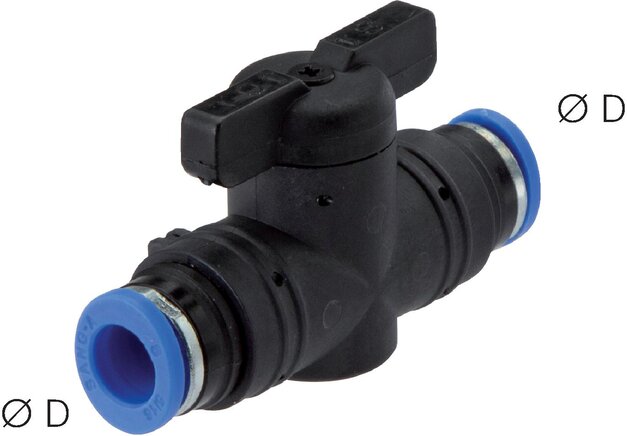

Stop cocks with push-in fitting, Standard

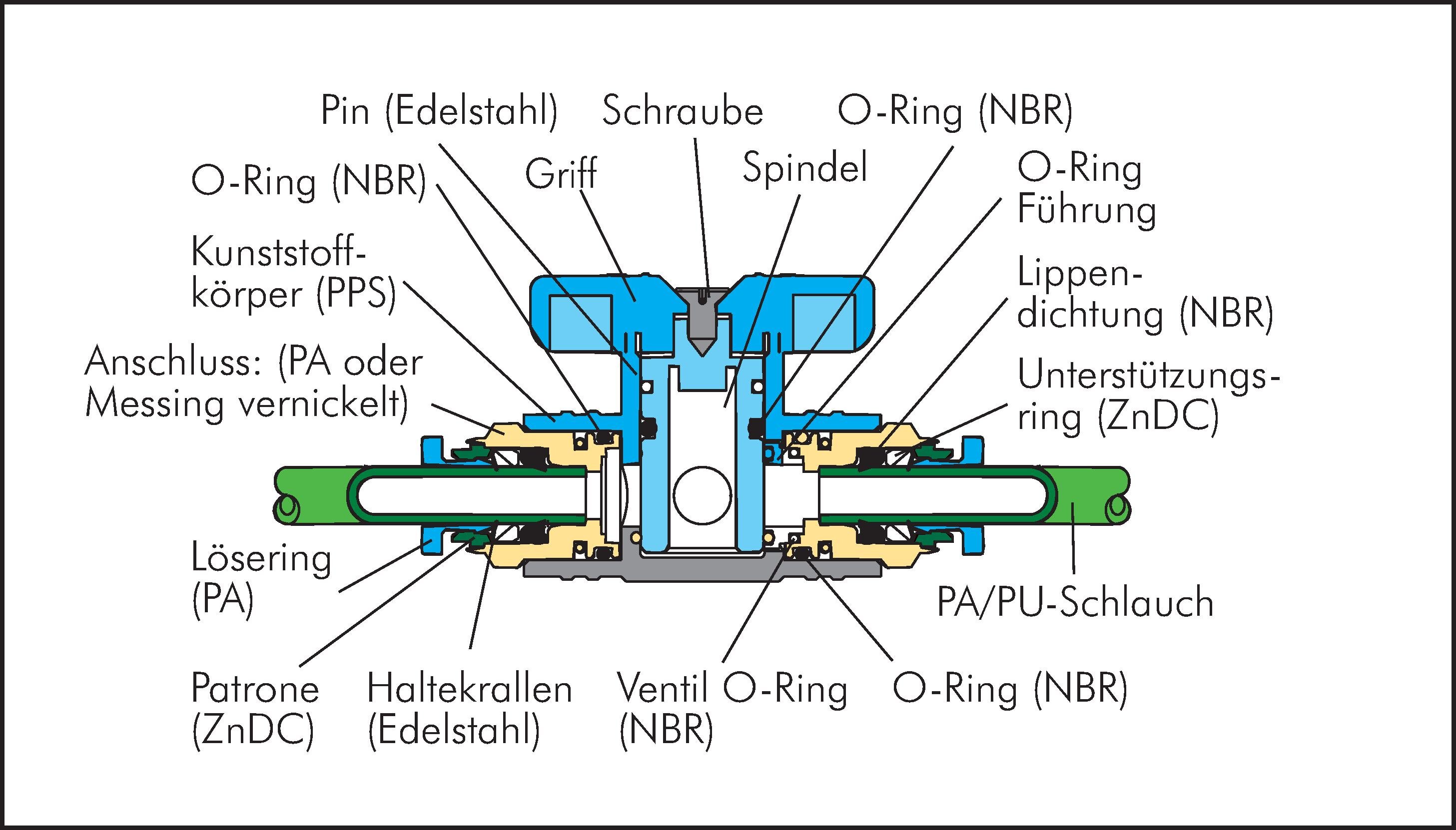

Materials:

Body: Nickel-plated brass / PA 66 / PPS, seal: NBR, holding claw: stainless steel, cartridge: ZnDC nickel-plated, sleeve: PA 66 (only silicone-free seals and lubricants are used during assembly)

Temperature range:

-20 to +80 °C

Operating pressure:

-0,95 to 20 bar

Media:

Compressed air, neutral gases

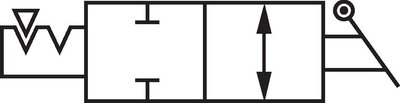

Functional principle:

The stop cocks shut off the airflow, thus separating the 2 systems from one another. No venting occurs.

Advantages:

•Very compact design

Documents:

More information Less information

Filter items

materiál
Please select
modelová rada
Please select
Průměr trubky (vnější)
Please select
závit pro zašroubování
Please select
more filters
Stop cocks with push-in fitting, Standard:
4 of 4 articles
€10.23 incl. VAT
Immediately available
€10.23 incl. VAT
Immediately available
€13.97 incl. VAT
Immediately available
€14.82 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
