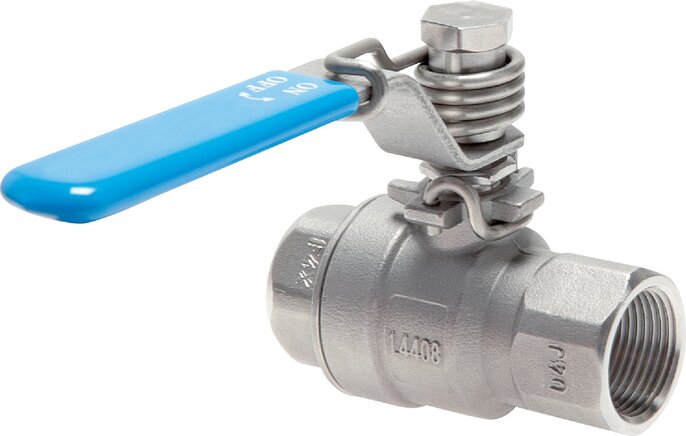

Stainless steel-ball valves with spring return, up to 63 bar
Materials:
Body: 1.4408, ball: 1.4408, seal: PTFE, handle and spring: 1.4301
Temperature range:
-20 to +180 °C (dependent on operating pressure)
Media:
Water, steam, oil, compressed air, vacuum (max. -0.9 bar), fuels, solvents, aggressive media
Function:
The basic setting the ball valve is in the closed position. It is opened against the spring force. When releasing the handle it jumps into the "Close" position. Closing should be supported manually (no quick shut-off valve).
Optional:
Certificate 3.1
Advantages:

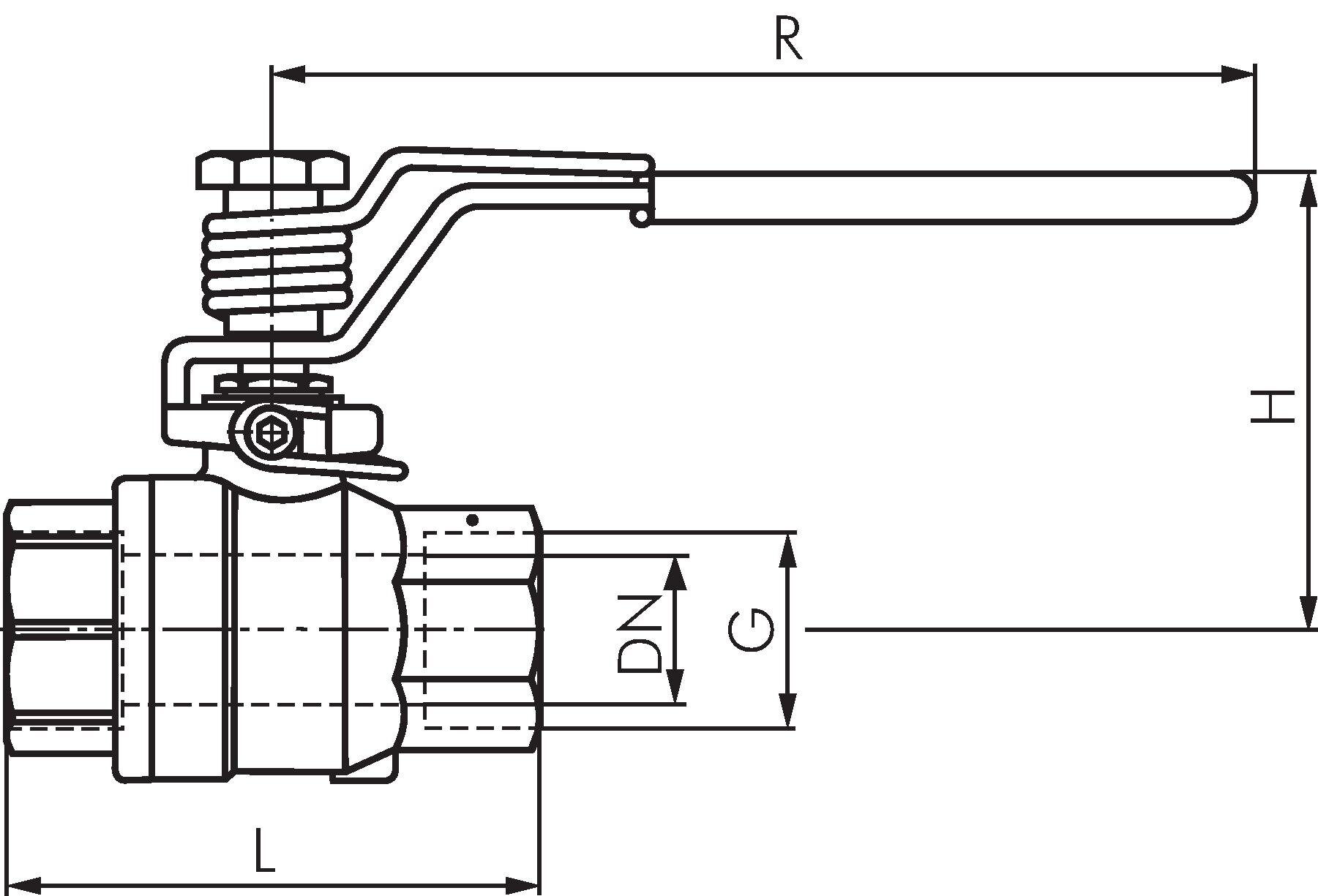

•Length according to DIN 3202-M3
*length not according to DIN
Documents:
More information
Filter items
more filters
Stainless steel-ball valves with spring return, up to 63 bar:
8 of 8 articles
€314.03
incl. VAT
€314.03
incl. VAT
€332.50
incl. VAT
€361.61
incl. VAT
€425.94
incl. VAT
€509.40
incl. VAT
€583.78
incl. VAT
€669.34
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
