Item group

Solenoid valves for valve terminals G1/8", series RE46

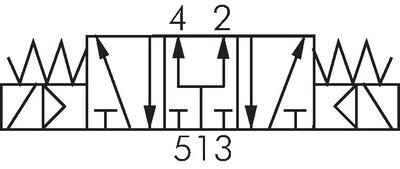

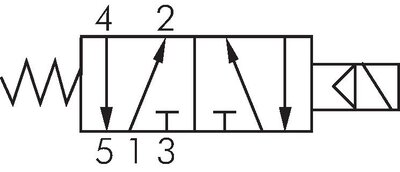

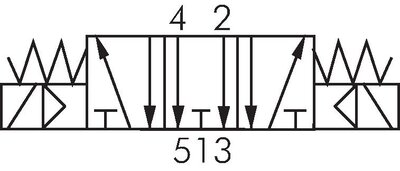

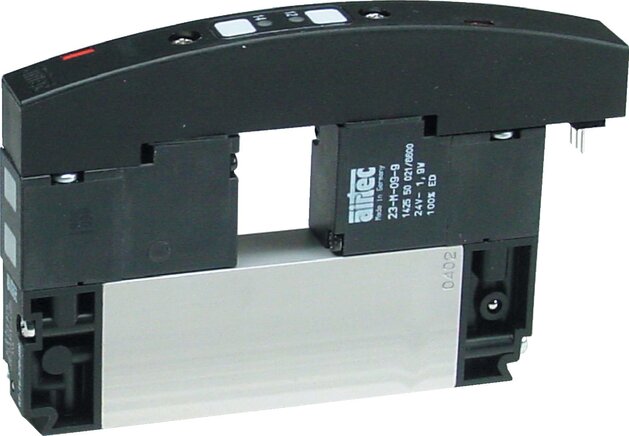

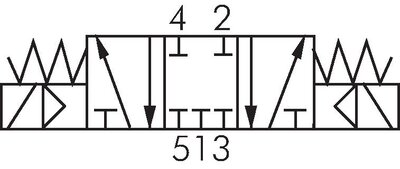

Exemplary representation: Connection plate valve Schematic symbol: 2x 3/2-way solenoid valve with air spring (NC/NC) Schematic symbol: 2x 3/2-way solenoid valve with air spring (NO/NO) Schematic symbol: 2x 3/2-way solenoid valve with air spring (NC/NO) Schematic symbol: 5/2-directional with air spring return (monostable) Schematic symbol: 5/2-way solenoid valve with spring return Schematic symbol: 5/2-way solenoid pulse valve Schematic symbol: 5/3-way solenoid valve (middle position closed) Schematic symbol: 5/3-way solenoid valve (middle position deaerates) Schematic symbol: 5/3-way solenoid valve (middle position ventilates)

Materials:

Body: Aluminium / plastic, seals: NBR

Temperature range:

-10 to +50 °C

Operating pressure:

3 to 8 bar (0 - 8 bar for external air connection)

Media:

oiled and unoiled filtered compressed air

Flow:

3/2-way: NC: 430 l/min, NO: 630 l/min, 5/2-way: Pneumatic spring: 950 l/min, mechanical spring: 810 l/min, pulse valve: 950 l/min, 5/3-way: 680 l/min

Control voltages:

24 V DC

Voltage tolerance:

± 10 %

Power consumption:

1,3 W / solenoid

Protection class:

IP 65

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 774) atlas9_seiten/774.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Solenoid valves for valve terminals G1/8", series RE46:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
KF 46 310/2 HN S12
Solenoid valve for RE46, 2x 3/2-way (NC/NC)
103,66€ incl. VAT
KF 46 312/2 HN S12
Solenoid valve for RE46, 2x 3/2-way (NO/NO)
103,66€ incl. VAT
KF 46 314/2 HN S12
Solenoid valve for RE46, 2x 3/2-way (NC/NO)
103,66€ incl. VAT
KF 46 510 HN S12
Solenoid valve for RE46, 5/2-directional with air spring return (monostable)
75,98€ incl. VAT
KF 46 511 HN S12
Solenoid valve for RE46, 5/2-directional with mech. spring return (monostable)
77,46€ incl. VAT
KF 46 520 HN S12
Solenoid valve for RE46, 5/2-directional pulse valve (bistable)
99,06€ incl. VAT
KF 46 530 HN S12
Solenoid valve for RE46, 5/3-way (centre position closed)
124,20€ incl. VAT
KF 46 533 HN S12
Solenoid valve for RE46, 5/3-way (centre position vented)
124,20€ incl. VAT
KF 46 534 HN S12
Solenoid valve for RE46, 5/3-way (centre position breathing)
124,20€ incl. VAT
