Item group

Single-ring ball valves with adhesive sockets, PVC-U (water version), PN 16

Name: Single ring adhesive sockets, ball valve, PVC-U, 20mm (Water version.)
Brand: Landefeld
SKU: PVCKHER 20 WASSER
Price: 23.07 EUR
Availability: InStock

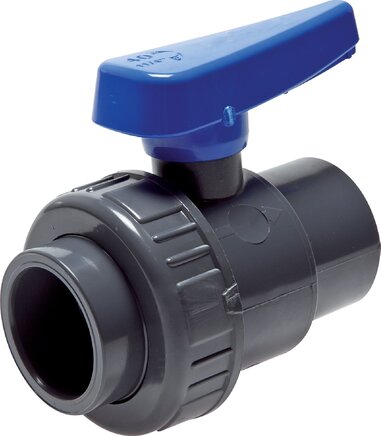

Exemplary representation: Single-ring ball valves with adhesive sleeves, PVC-U (water version)

Advantages:

•radial can be installed and removed,
•safe-float ball,
•optimum flow properties

Temperature range:

0°C to +60°C, (material PP-H: 0°C to +100°C)

Materials:

Body and ball: PVC-U, ball seat: PE

Operating pressure:

0 to 16 bar

Warning:

Not suitable for compressed air or other gases under pressure!

*applies to water and 1 bar pressure drop

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 524) atlas9_seiten/524.pdf

Single-ring ball valves with adhesive sockets, PVC-U (water version), PN 16:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

PVCKHER 20 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 20mm (Water version.)

23,07€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	20	15	73

PVCKHER 25 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 25mm (Water version.)

26,26€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	25	20	86

PVCKHER 32 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 32mm (Water version.)

29,62€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	32	25	98

PVCKHER 40 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 40mm (Water version.)

41,97€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	40	32	114

PVCKHER 50 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 50mm (Water version.)

56,38€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	50	40	134

PVCKHER 63 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 63mm (Water version.)

96,74€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	63	50	165

PVCKHER 75 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 75mm (Water version.)

204,06€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	75	65	221

PVCKHER 90 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 90mm (Water version.)

251,54€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	90	80	227

PVCKHER 110 WASSER

Single ring adhesive sockets, ball valve, PVC-U, 110mm (Water version.)

460,89€ incl. VAT

Seals	Inner diameter D [mm]	DN [mm]	H [mm]
EPDM	110	100	280
