Zaporne pipe z zunanjim navojem in naticni prikljucek, standarden
Item group
Shut-off valves with male threads & push-in connection, Standard

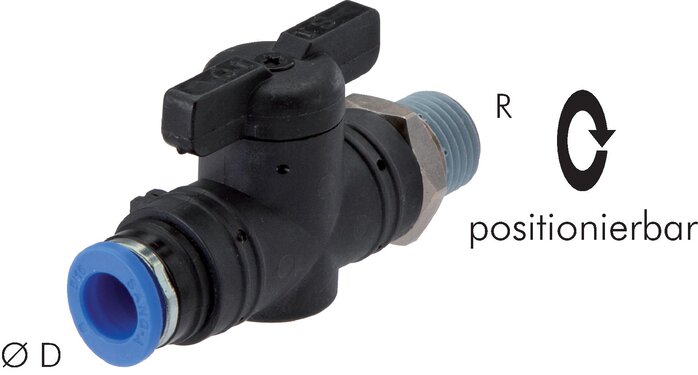

Zgleden uprizoritev: Shut-off valve with conical male thread and push-in connection
Risba: Structure of IQS stopcocks

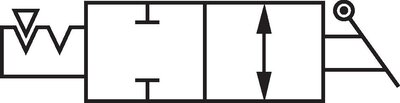

Schematic symbol: 2/2-way shut-off valve
Zgleden uprizoritev: Shut-off valve with conical male thread and push-in connection
Materials:
Body: Nickel-plated brass / PA 66 / PPS, seal: NBR, holding claw: stainless steel, cartridge: ZnDC nickel-plated, sleeve: PA 66 (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 20 bar
Media:
Compressed air, neutral gases
Functional principle:
The stop cocks shut off the airflow, thus separating the 2 systems from one another. No venting occurs.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
