Safety push-button coupling sockets with hose screw connection, NW 7,2

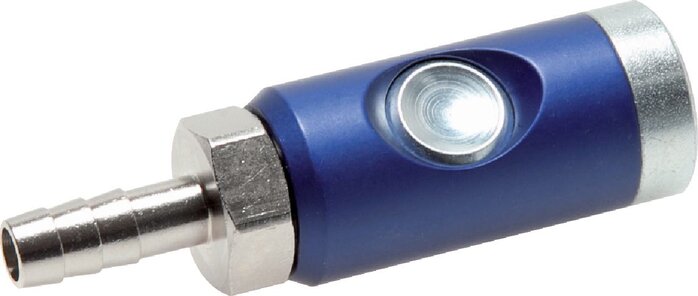

Exemplary representation: Safety push-button coupling with grommet, galvanised steel Exemplary representation: Safety push-button coupling with grommet, stainless steel Exemplary representation: Safety push-button coupling with grommet, plastic detailed view: Plug dimensions

Materials:

Type zinc-plated steel: Body: Hardened and zinc-plated steel / aluminium / nickel-plated brass, seal: NBR, type stainless steel: Body: 1.4404, spring: 1.4319, balls: 1.4028, seal: FKM, Type plastic: Body: composite material (conductive) / nickel-plated brass, seal: NBR

Temperature range:

-20°C to max. +70°C (plastic type: -15°C to max. +70°C)

Operating pressure:

0 to 12 bar

Flow*:

1500 l/min

Function:

The coupling occurs as for standard couplings by inserting the push-in nipple into the coupling socket. Uncoupling is effected by pressing the uncoupling button. Then the coupling socket closes and ventilates the coupling plug when still held in the coupling socket. This reliably prevents the dangerous recoil effect. Zinc-plated steel type and 1.4404: Plug is released by pressing a second time, plastic type: plug is only released after the residual pressure on the plug side has dropped below approx. 0,5 bar.

Advantages:

•Coupling head can be positioned - after screwing in, the pushbutton can be rotated to an ergonomically optimum position,
•Safety function is controlled via the residual pressure on the plug side (only type plastic),
•antistatic, meets the ATEX 2 standard (not a potential source of ignition) and can therefore be used in paint booths, environments with a lot of gas or grain silo operations (only type plastic),
•plastic body prevents scratching of surfaces (only type plastic),
•manufactured silicone-free (only type plastic)

Recommendation:

Use coupling plugs made of hardened steel!

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
*6 bar input pressure, 0.6 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 294) atlas9_seiten/294.pdf
    Documentation doku/sicherheitskupplungen.pdf
