Item group

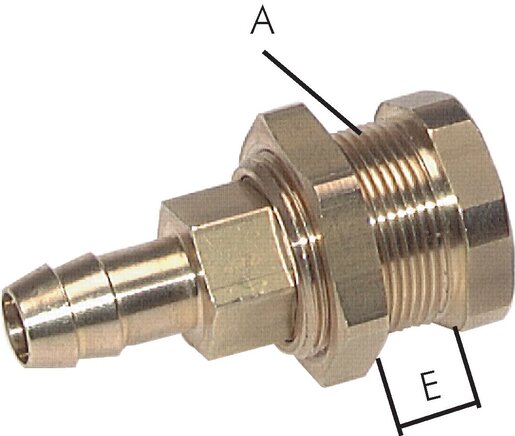

Quick release coupling sockets with hose screw connection & bulkhead threads, NW 5

Materials:

Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:

-0,95 to 35 bar

Flow*:

510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)

Application:

For example, fire service, ambulances and buses, which are supplied externally by a compressed air system for emergencies. Connecting the coupling: Inserting the plug. Loosening the coupling: Pull on the plug and hose, the coupling loosens automatically.

Installation:

To guarantee the pull-off function the coupling must be mounted with the bulkhead thread and supplied using an elastic hose.

Optional:

Can be used for plug shut-off on both sides -BA
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Documents:

More information Less information
Quick release coupling sockets with hose screw connection & bulkhead threads, NW 5:
12 of 12 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
