Item group

Pressure switch - screw terminals, up to 150 bar

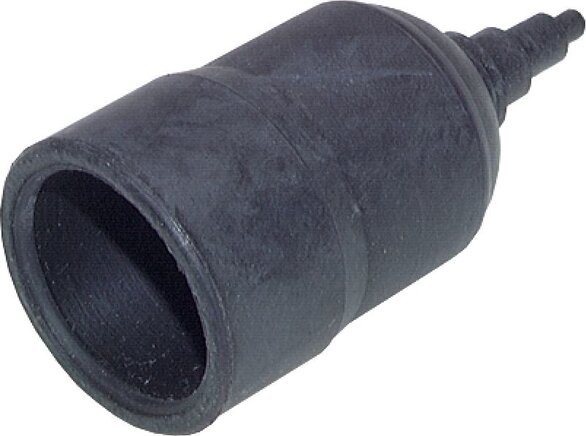

Exemplary representation: Pressure switches Exemplary representation: Vacuum switch Exemplary representation: Safety cap for vacuum switch Schematic symbol: NO contact Schematic symbol: NC contact

Materials:

Body: zinc plated steel (vacuum switch: brass), diaphragm: NBR (vacuum switch: FKM), DRSS / DRSO 150: piston 1.4305 with NBR seal

Temperature range:

-30°C to max. +100°C (Vacuum switch -5°C to max. +120°C)

Switch-back difference (hysteresis)

5 - 15 % of the value that has been set

Protection class:

IP 65 (clamps IP 00)

Electrical connection:

Screw terminals (0.1 - 1 bar & NO contact 1 - 10 bar: Blade connector 6.3x0.8 (AMP 6.3x0.8))

Media:

Hydraulic oil, machine oil, heating oil, air, (conditionally also suitable for water)

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 685) atlas9_seiten/685.pdf
    Documentation doku/drs.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Pressure switch - screw terminals, up to 150 bar:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
3,43€ incl. VAT
