Item group

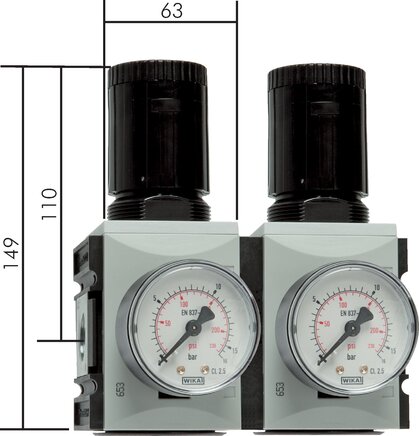

Pressure regulators with continuous pressure supply - Futura model series 2, up to 5200 l/min
Version:
Self-relieving pressure regulator
Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +50 °C
Input pressure:
Max. 16 bar (model series 0: max 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.
Switch panel thread:
M 42x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
G 3/8": 4500 l/min, G 1/2": 5200 l/min, secondary vent: 70 l/min (precision pressure regulator 120 l/min)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•by combining several regulators in a block, one compressed air supply can supply several compressed air circuits with independently controllable pressures. The compressed air outlet (G 3/8") is located opposite the pressure gauge.
*Standard series, please prefer for use, since the pressure control range is universally usable, **low own air consumption (2.6 l/min at 6 bar outlet pressure) but better hysteresis - almost independent of the primary pressure, control accuracy ± 25 mbar
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 563) atlas9_seiten/563.pdf
Documentation doku/futura.pdf
Documentation doku/futura.pdf
