Item group

Pressure limiting valves for inline assembly, up to 150 l/min

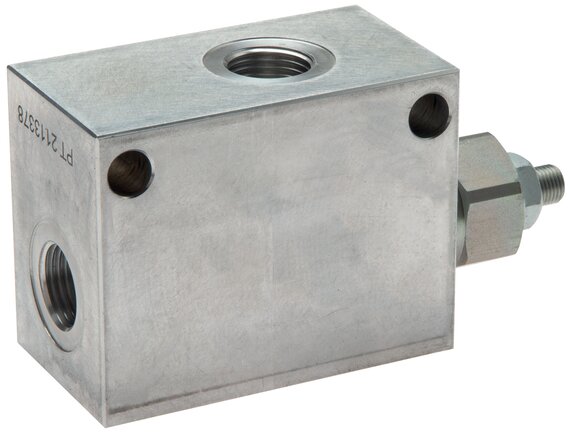

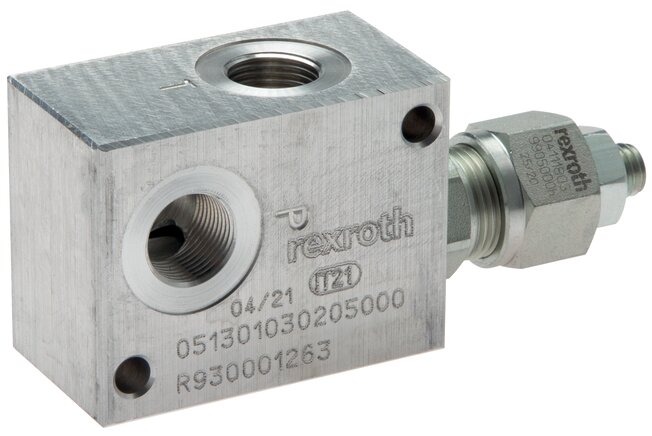

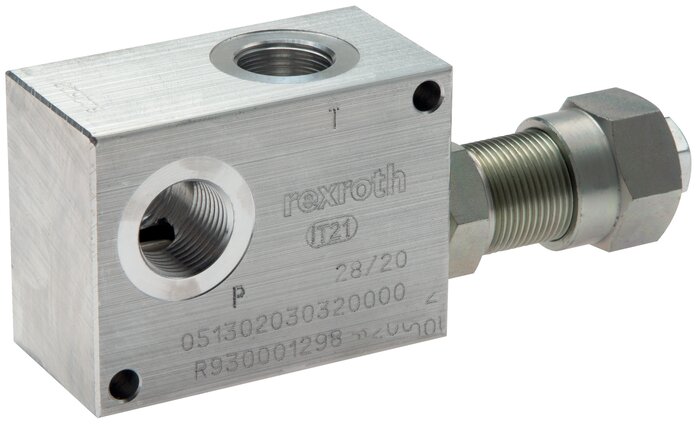

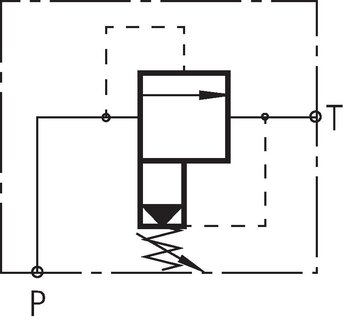

Exemplary representation: Pipe pressure relief valve (nominal flow 30 l/min) Exemplary representation: Pipe pressure relief valve (nominal flow 80 l/min) Exemplary representation: Pipe pressure relief valve (nominal flow 150 l/min) Schematic symbol: Pipe pressure relief valve (nominal flow 30 l/min) Schematic symbol: Pipe pressure relief valve (nominal flow 80 l/min) Schematic symbol: Pipe pressure relief valve (nominal flow 150 l/min)

Suitable:

The valves restrict the system pressure and are ideal for overpressure protection as well as for continuous operation.

Materials:

Body: Aluminium, screw-in valve: zinc plated steel, seal: NBR

Temperature range:

-20 to +80 °C

Media:

Hydraulic oils on the basis of mineral oil
*minimum pressure regulation range determined at 5 l/min

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 816) atlas9_seiten/816.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Pressure limiting valves for inline assembly, up to 150 l/min:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
DBV34P210Q150
pressure limiting valve 2x G 3/4", 10 to 210 bar, max. 150 l/min
248,67€ incl. VAT
DBV34P350Q150
pressure limiting valve 2x G 3/4", 35 to 350 bar, max. 150 l/min
248,67€ incl. VAT
DBV10P210Q150
pressure limiting valve 2x G 1", 10 to 210 bar, max. 150 l/min
256,97€ incl. VAT
DBV10P350Q150
pressure limiting valve 2x G 1", 35 to 350 bar, max. 150 l/min
256,97€ incl. VAT
