Item group

Pressure gauge transducer, up to 0,125% of the span

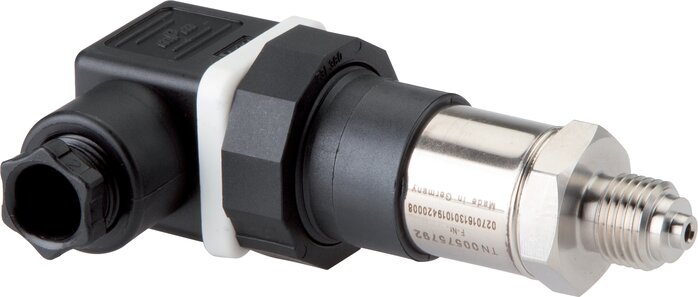

Exemplary representation: Pressure gauge transducer

Application:

for general applications

Materials:

Body: 1.4031, wetted parts: 1.4301 / ceramic (>= 100 bar: 1.4301 / 1.4542), FKM

Temperature range:

Measured material temperature: -20°C to max. +125°C (>= 100 bar: -40°C to max. +125°C), ambient temperature: -20°C to max. +85°C (>= 100 bar: -30°C to max. +100°C)

Protection class:

IP 65

Connection:

G 1/4" *

Power supply:

10 to 30 V (DC)

Electrical connection:

Right-angle connector, size 3, 4-pin (DIN 43650 / EN 175301-803 A) (Flat pin)

Output signal:

4 - 20 mA

Non-linearity (IEC 61298-2):

± 0,125% (100 - 600 bar: ± 0,25%, 1000 bar: ± 0,5%) of the span (BFSL)

Accuracy (IEC 61298-2):

± 0.25% (100 - 600 bar: ± 0.35%, 1000 bar: ± 0.6%) of the span
*with centring pin for profiled seal

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 682) atlas9_seiten/682.pdf
    Documentation doku/dmub.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Pressure gauge transducer, up to 0,125% of the span:
